Requirement

All step is already tested using this requirement

1.SAP GUI 6.40 Patch Level 0-21 or SAP GUI 7.10 Patch Level 0 (download)

2.Microsoft Visual Studio 2005

3.Windows 2000 or XP

In SAP system, there are roles that we must pass through SAP Logon to access SAP feature. SAP Logon need a special codes to be a standard SAP Logon system, which is:

•Client (R/3 System, client number from logon)

> A client in the r/3 system that you want to connect to

•ApplicationServer (Name of Application Server )

> The name of the host that you want to connect to

•SystemNumber ( System Number server SAP )

> Specify the system number (e.g. 00) of the SAP System that you want to connect to

•System ( System ID)

> Specify the system ID (e.g. OSS) of the SAP System that you want to connect to

•User ( User Logon Name )

•Password ( User Password )

•Language ( System Language )

If you not completely all the condition of that code above, you can’t using/accessing a feature in SAP GUI ActiveX, especially “SAP Functions” .



Installed Component

1.Dotnet Framwork 2.0

2.SAP ActiveX ( SAPLogonControl and SAPFunctions )



____________________________________________________________________________



Create SAP Logon



SAPLogonControl Concept and Format:

 … Declare a New Connection …

 … Fill Connection Variable …

 … login …



Example:



…

    Dim l_SAPLogonControl As New SAPLogonCtrl.SAPLogonControl

    Dim l_conn As SAPLogonCtrl.Connection

    l_conn = l_SAPLogonControl.NewConnection



    If l_conn.Logon(0, False) Then

      MsgBox("Connect to SAP.")

    End If

…



>> … LogOn(0,false) … if you set to False then Dialog Login Menu will be appear.



Note : “Connect to SAP” = it’s mean ‘You have Succeed Login to SAP !!’

The following Example show how to used SAP Login Control:





Procedure:

1.Run Microsoft Visual Basic .Net

2.Create new Project > Visual Studio > Windows > Windows Application

3.Add SAP ActiveX

4.Add one “ Button ” Component to a Form





5.Add OnClik event on SAPLogonControl1 component with code bellow :

  Private Sub BLogon_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BLogon.Click

    Dim l_SAPLogonControl As New SAPLogonCtrl.SAPLogonControl

    Dim l_conn As SAPLogonCtrl.Connection

    l_conn = l_SAPLogonControl.NewConnection



    If l_conn.Logon(0, False) Then

      MsgBox("Connect to SAP.")

    End If



  End Sub



6.Press “ Run/Start “ button for testing your code.



____________________________________________________________________________



Create SAP Logon with input dialog





Procedure:

1.Run Microsoft Visual Basic .Net

2.Create new Project > Visual Studio > Windows > Windows Application

3. Add SAP ActiveX

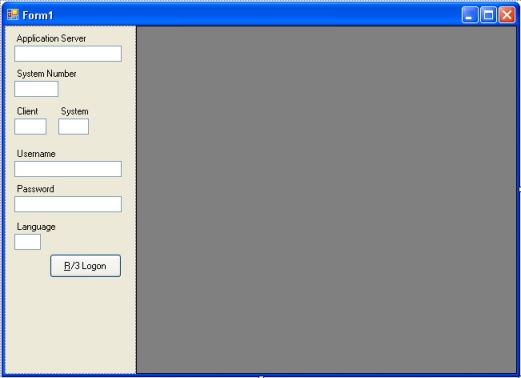

4.Add and place it the others component like a picture bellow :







5.Add OnClick event at SAPLogonControl1 component with code bellow :

  Private Sub BLogon_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BLogon.Click

    Dim l_SAPLogonControl As Object 'New SAPLogonCtrl.SAPLogonControl

    Dim l_conn As Object 'SAPLogonCtrl.Connection



    l_SAPLogonControl = CreateObject("SAP.LogonControl.1")

    l_conn = l_SAPLogonControl.NewConnection



    l_conn.Client = eClient.Text

    l_conn.ApplicationServer = eApplicationServer.Text

    l_conn.SystemNumber = eSystemNumber.Text

    l_conn.System = eSystem.Text

    l_conn.User = eUsername.Text

    l_conn.Password = ePassword.Text

    l_conn.Language = eLanguage.Text



    If l_conn.Logon(0, True) Then

      MsgBox("Connect to SAP.")

    End If



  End Sub



6.Press “ Run/Start “ button for testing your code.



____________________________________________________________________________



Calling and Using RFC/BAPIs from SAP R/3



BAPIs (Business Application Program Interfaces) is SAP business objects held in the Business Object Repository (BOR) encapsulate their data and processes. External access to the data and processes is only possible using specific methods.

RFC (Remote Function Call) is interfaces provided for communication between SAP Systems and with external partners.



The BAPIs and RFC in the R/3 System are currently implemented as function modules which are created and managed in the Function Builder (SE37). Not all SAP user can used a Function Builder. Only user who have an access key from SAP can used all the feature in Function Builder. You can get Access key from http://service.sap.com.

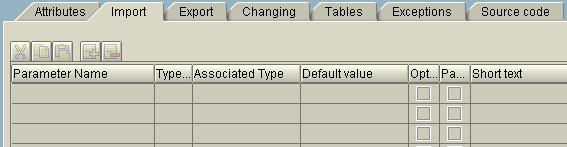

In RFC or BAPI desain there are 5 variable type, which is Import, Export, Changing, Tables and Exceptions. The variable which used generally is Import, Export and Tables.



Import Variable in SAPFunctions is declare as a function “ exports “, while the Export variable is declare as a function “ imports “.



SAPFunctions Concept and Format:

 … SAPFunction Connection …

 … Calling SAPFunctions …

         … Fill (upload) Import/Tables variable in SAP …

         … Call (download) Export/Tables variable in SAP …

 … Close Connection …





The following Example show how to call RFC :





Procedure :

1.Run Microsoft Visual Basic .Net

2.Create new Project > Visual Studio > Windows > Windows Application

3.Add SAP ActiveX

4.Add and place it the others component like a picture bellow :





6.Add OnLoad event at Form

  Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

    DataGridView1.Columns.Add("No", "No")

    DataGridView1.Columns.Add("MANDT", "MANDT")

    DataGridView1.Columns.Add("BNAME", "BNAME")

    DataGridView1.Columns.Add("SUBSYSTEM", "SUBSYSTEM")

    DataGridView1.Columns.Add("AGR_NAME", "AGR_NAME")

    DataGridView1.Columns.Add("FROM_DAT", "FROM_DAT")

    DataGridView1.Columns.Add("TO_DAT", "TO_DAT")

    DataGridView1.Columns.Add("ORG_FLAG", "ORG_FLAG")



  End Sub



7.Add OnClick event at BLogon button with this code bellow :

  Private Sub BLogon_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BLogon.Click

    Dim l_SAPLogonControl As Object 'New SAPLogonCtrl.SAPLogonControl

    Dim l_conn As Object 'SAPLogonCtrl.Connection

    Dim l_SAPFunction As New SAPFunctionsOCX.SAPFunctions



    Dim l_Function As SAPFunctionsOCX.Function

    Dim l_Table As SAPTableFactoryCtrl.Table

    Dim i As Integer



    l_SAPLogonControl = CreateObject("SAP.LogonControl.1")

    l_conn = l_SAPLogonControl.NewConnection



    l_conn.Client = eClient.Text

    l_conn.ApplicationServer = eApplicationServer.Text

    l_conn.SystemNumber = eSystemNumber.Text

    l_conn.System = eSystem.Text

    l_conn.User = eUsername.Text

    l_conn.Password = ePassword.Text

    l_conn.Language = eLanguage.Text



    If l_conn.Logon(0, True) Then

      'Declare RFC Conncetion

      l_SAPFunction = CreateObject("SAP.Functions")

      l_SAPFunction.Connection = l_conn

      'Call RFC or BAPI

      l_Function = l_SAPFunction.Add("/CRYSTAL/GET_USER_LIST")

      'If RFC or BAPI doesn't need any export variable (in SAP is Imports)

      'l_Function.exports(< variable name for Import in SAP >).Value = < value >

      'Example:

      'l_Function.exports("PERNR").Value = Edit1.Text

      If Not l_Function.Call Then

        ' IF RFC or BAPI failed to call

        MsgBox(l_Function.Exception)

      Else

        'Called (Download) table variable from RFC or BAPI

        l_Table = l_Function.Tables.Item("USERACTGRP")

        ' If RFC or BAPI doesn't need any import variable (in SAP is Export)



        '< value > = l_Function.imports(<variable name for Export in SAP >).value

        'Example:

        'Edit2.Text = l_Function.imports('PERNR').value



        For i = 0 To l_Table.RowCount - 1

          'Get value from table

          'l_Table.Value(< data to >, < Field Name > )

          DataGridView1.Rows.Add()

          DataGridView1.Rows(i).Cells(0).Value = i + 1

          DataGridView1.Rows(i).Cells(1).Value = l_Table.Value(i + 1, "MANDT")

          DataGridView1.Rows(i).Cells(2).Value = l_Table.Value(i + 1, "BNAME")

          DataGridView1.Rows(i).Cells(3).Value = l_Table.Value(i + 1, "SUBSYSTEM")

          DataGridView1.Rows(i).Cells(4).Value = l_Table.Value(i + 1, "AGR_NAME")

          DataGridView1.Rows(i).Cells(5).Value = l_Table.Value(i + 1, "FROM_DAT")

          DataGridView1.Rows(i).Cells(6).Value = l_Table.Value(i + 1, "TO_DAT")

          DataGridView1.Rows(i).Cells(7).Value = l_Table.Value(i + 1, "ORG_FLAG")



        Next i

      End If

      'Close SAP Conncetion

      l_conn.Logoff()

    End If



  End Sub



7.Press “ Run/Start “ button for testing your code.
