Report (301)

Objektif

▪Membuat Report

▪Hasil

▪Kode Sintak

Kode Transaksi

SE38 - ABAP Editor

Tabel

MARA - General Material Data

MAKT - Material Descriptions

T006A - Assign Internal to Language-Dependent Unit

Support

Video



Membuat Report

1.Buka SE38

2.Salin Program "YPRACTICE_101" menjadi "YPRACTICE_301"

3.Ubah Program "YPRACTICE_301"

4.Buka Goto > Attributes, dan ubah "Title" dengan "301 - Display List of Master Material"

5.Modifikasi Deklarasi Report

Sebelum

REPORT  ypractice_101.



Setelah

REPORT  ypractice_301.



6.Tambahkan Screen Baru untuk menampilkan Report HTML

Tampilkan Langkah-langkahnya

▪Klik "ar0015" untuk menampilkan semua objek

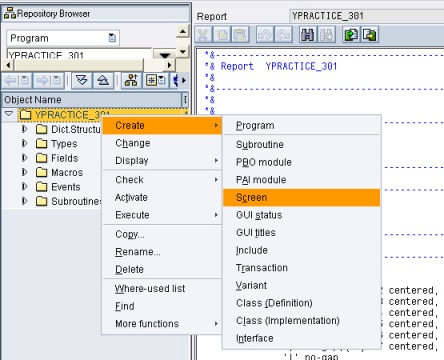

▪Klik kanan pada Object Tree

ar0016

▪Masukkan 'Screen number' "2000" dan kemudian tekan "abap_tutorial0025"

ar0017

▪Isikan short description "Html Report"

▪Klik "ar0018" untuk memulai design layout(desain Tampilan)

▪Klik "ar0020" untuk menambahkan komponen "Custom Control" ke screen and isi 'Custom Control name'(Nama) dengan "CC_REPORT_DISPLAY"

▪Seleksi  "CC_REPORT_DISPLAY", lalu klik "ar0021" (Attribute Windows)

▪Atur komponen seperti screen dibawah

ar0022   ar0023

▪Klik "abap_tutorial0019" untuk menyimpan design layout

▪Tutup design layout and kembali ke screen sebelumnya

▪Klik tab "Element List"

▪Isi pada cell (kolom) kosong dengan "OK_CODE"

ar0031

▪Klik ganda "ar0024" dan kembali ke kode sintak

7.Hapus DEFINE macro_data_possition.

8.Tambahkan variabel Global Baru

DATA: ok_code LIKE sy-ucomm,

      save_ok TYPE sy-ucomm.



* Dibutuhkan Report HTML

TYPES: BEGIN OF gy_html_code,

         line_code(1000),

       END OF gy_html_code.

DATA: gi_html_code TYPE TABLE OF gy_html_code WITH HEADER LINE.



DATA: cc_report_display TYPE REF TO cl_gui_html_viewer,

      web_container TYPE REF TO cl_gui_custom_container.



DEFINE write_code1.

  clear gi_html_code.

  gi_html_code-line_code = &1.

  append gi_html_code.

END-OF-DEFINITION.



DEFINE write_code2.

  clear gi_html_code.

  concatenate &1 &2 into gi_html_code-line_code.

  append gi_html_code.

END-OF-DEFINITION.



DEFINE write_code3.

  clear gi_html_code.

  concatenate &1 &2 &3 into gi_html_code-line_code.

  append gi_html_code.

END-OF-DEFINITION.



9.Modifikasi "Input Screen/Selection"

Sebelum

*----------------------------------------------------------------------*

*Input Screen/Selection

*----------------------------------------------------------------------*

SELECT-OPTIONS so_matkl FOR mara-matkl.

SELECT-OPTIONS so_matnr FOR mara-matnr.



Setelah

*----------------------------------------------------------------------*

*Input Screen/Selection

*----------------------------------------------------------------------*

SELECTION-SCREEN BEGIN OF BLOCK groupbox1 WITH FRAME TITLE text_101. "Declare Group Box 1



SELECTION-SCREEN BEGIN OF LINE.

SELECTION-SCREEN COMMENT 1(14) text_102 FOR FIELD so_matkl.

SELECT-OPTIONS so_matkl FOR mara-matkl OBLIGATORY DEFAULT '001'.

SELECTION-SCREEN END OF LINE.



SELECTION-SCREEN BEGIN OF LINE.

SELECTION-SCREEN COMMENT 1(14) text_103 FOR FIELD so_matnr.

SELECT-OPTIONS so_matnr FOR mara-matnr.

SELECTION-SCREEN END OF LINE.



SELECTION-SCREEN END OF BLOCK groupbox1.                              "End Group Box 1



SELECTION-SCREEN BEGIN OF BLOCK groupbox2 WITH FRAME TITLE text_201. "Declare Group Box 2



SELECTION-SCREEN BEGIN OF LINE.

SELECTION-SCREEN COMMENT 1(18) text_202 FOR FIELD p_fname.

PARAMETERS p_fname LIKE rlgrap-filename OBLIGATORY DEFAULT 'C:\abap_report_01.html'.

SELECTION-SCREEN END OF LINE.



SELECTION-SCREEN END OF BLOCK groupbox2.                              "End Group Box 2



10.Buat subroutine baru "fm_initialization"

*&--------------------------------------------------------------------*

*&      Form  fm_initialization

*&--------------------------------------------------------------------*

*       text

*---------------------------------------------------------------------*

FORM fm_initialization.

  IF cc_report_display IS INITIAL.



    CREATE OBJECT web_container

        EXPORTING

            container_name = 'CC_REPORT_DISPLAY'.



    CREATE OBJECT cc_report_display

         EXPORTING

              parent    = web_container.

    IF sy-subrc NE 0.

*

    ENDIF.

  ENDIF.

ENDFORM.                    "fm_initialization



11.Buat inisiasi kode, Tuliskan setelah Input Screen Block

*----------------------------------------------------------------------*

*INITIALIZATION

*----------------------------------------------------------------------*

INITIALIZATION.

  text_101 = 'Selection Parameter'.

  text_102 = 'Material Group'.

  text_103 = 'Material Number'.



  text_201 = 'Save Html File'.

  text_202 = 'File Location'.



  PERFORM fm_initialization.



12.Buat subroutine baru "fm_create_css"

*&--------------------------------------------------------------------*

*&      Form  fm_create_css

*&--------------------------------------------------------------------*

*       text

*---------------------------------------------------------------------*

*      -->FV_CSS     text

*---------------------------------------------------------------------*

FORM fm_create_css.

  write_code1 '<style type="text/css">'.

  write_code1 '<!--'.

  write_code1 '.styleHeader {'.

  write_code1 '        font-family: Arial, Helvetica, sans-serif;'.

  write_code1 '        font-size: 12px;'.

  write_code1 '        font-weight: bold;'.

  write_code1 '        text-align: center;'.

  write_code1 '                                  }'.

  write_code1 '.style1 {'.

  write_code1 '        font-family: Arial, Helvetica, sans-serif;'.

  write_code1 '        font-size: 12px;'.

  write_code1 '        text-align: center;'.

  write_code1 '                                  }'.

  write_code1 '.style2 {'.

  write_code1 '        font-family: Arial, Helvetica, sans-serif;'.

  write_code1 '        font-size: 12px;'.

  write_code1 '        text-align: left;'.

  write_code1 '                                  }'.

  write_code1 '-->'.

  write_code1 '</style>'.



ENDFORM.                    "fm_create_css



13.Buat subroutine baru "fm_create_html_file"

*&--------------------------------------------------------------------*

*&      Form  fm_create_temp_html

*&--------------------------------------------------------------------*

*       text

*---------------------------------------------------------------------*

*      -->FI_FILE    text

*      -->FV_URL     text

*---------------------------------------------------------------------*

FORM fm_create_html_file TABLES fi_file STRUCTURE gi_html_code USING fv_url.

  CONDENSE fv_url NO-GAPS.



  CALL FUNCTION 'WS_DOWNLOAD'

    EXPORTING

      filename            = fv_url

      filetype            = 'ASC'

    TABLES

      data_tab            = fi_file

    EXCEPTIONS

      file_open_error     = 1

      file_write_error    = 2

      invalid_filesize    = 3

      invalid_table_width = 4

      invalid_type        = 5

      no_batch            = 6

      unknown_error       = 7

      OTHERS              = 8.



ENDFORM.                    "fm_create_temp_html



14.Buat subroutine baru "fm_load_html"

*&--------------------------------------------------------------------*

*&      Form  fm_load_html

*&--------------------------------------------------------------------*

*       text

*---------------------------------------------------------------------*

*      -->URL        text

*---------------------------------------------------------------------*

FORM fm_load_html USING fv_url.

  CALL METHOD cc_report_display->show_url

    EXPORTING

      url = fv_url.

ENDFORM.                    "fm_load_html



15.Modifikasi subroutine "fm_display_data"

Sebelum

*&--------------------------------------------------------------------*

*&      Form  fm_display_data

*&--------------------------------------------------------------------*

*       text

*---------------------------------------------------------------------*

FORM fm_display_data.

*  membuat Teks Header

  ULINE AT (gv_width).                    " Upper frame border

  FORMAT COLOR COL_HEADING INTENSIFIED.   " Title color

  macro_data_possition : 'HEADER' 'Mat. Group' 'Mat. No.' 'Description' 'Old Mat. No.' 'Base Unit' 'Measure'.

  WRITE: AT gv_width sy-vline.            " Right border

  ULINE AT (gv_width).                    " Line below titles

  FORMAT COLOR OFF.



*  Menampilkan Data Ke Layar

  LOOP AT gi_header.

    macro_data_possition : 'CONTENT'

                           gi_header-matkl

                           gi_header-matnr

                           gi_header-maktx

                           gi_header-bismt

                           gi_header-meins

                           gi_header-mseht.

  ENDLOOP.



*  Akhir dari  Line

  ULINE AT (gv_width).                    " Line below last data



ENDFORM.                    "fm_display_data



Setelah

*&--------------------------------------------------------------------*

*&      Form  fm_display_data

*&--------------------------------------------------------------------*

*       text

*---------------------------------------------------------------------*

FORM fm_display_data.



  REFRESH gi_html_code.



  PERFORM fm_create_css.

  write_code1 '<body>'.

  write_code1 '<table width="100%" border="0" cellspacing="2" cellpadding="0">'.



*  Membuat Teks Header

  write_code1 '  <tr bgcolor="#999999" class="styleHeader">'.

  write_code1 '    <td>Mat. Group</td>'.

  write_code1 '    <td>Mat. No.</td>'.

  write_code1 '    <td>Description</td>'.

  write_code1 '    <td>Old Mat. No.</td>'.

  write_code1 '    <td>Base Unit of Measure</td>'.

  write_code1 '    <td>Measure</td>'.

  write_code1 '  </tr>'.



*  Memnampilkan Data Ke Layar

  LOOP AT gi_header.

    write_code1 '  <tr bgcolor="#EBEBEB">'.

    write_code3 '    <td class="style1">' gi_header-matkl '</td>'.

    write_code3 '    <td class="style1">' gi_header-matnr '</td>'.

    write_code3 '    <td class="style2">' gi_header-maktx '</td>'.

    write_code3 '    <td class="style2">' gi_header-bismt '</td>'.

    write_code3 '    <td class="style1">' gi_header-meins '</td>'.

    write_code3 '    <td class="style2">' gi_header-mseht '</td>'.

    write_code1 '  </tr>'.



  ENDLOOP.



*  Akhir Dari Line

  write_code1 '</table>'.

  write_code1 '</body>'.





  PERFORM fm_create_html_file TABLES gi_html_code USING p_fname.

  PERFORM fm_load_html USING p_fname.



  CALL SCREEN 2000.



ENDFORM.                    "fm_display_data



16.Tambahkan GUI Status Baru untuk Screen 2000

Tampilkan Langkah-langkahnya

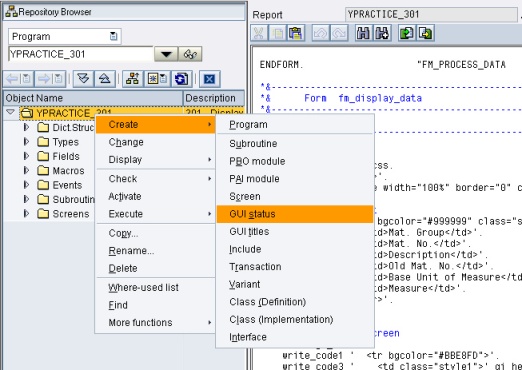

▪Klik kanan pada on Objek Tree

ar0025

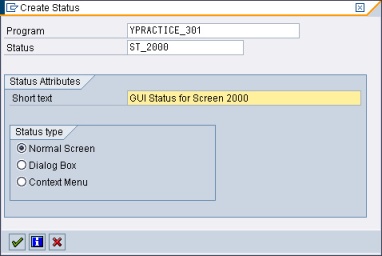

▪Isi Status dengan "ST_2000" dan Short Text dengan "GUI Status for Screen 2000"

ar0026

▪Klik "abap_tutorial0025"

▪Buka Function Key

▪Pilih Standard Toolbar dan Masukkan BACK pada icon nomer 3dari sebelah kiri

ar0027

▪Klik "abap_tutorial0019" Untuk Menyimpan GUI Status

▪Klik Ganda "ar0024" dan kembali ke Source Code (Kode sintak)

17.Klik Ganda Screen 2000 pada Objek Tree

ar0028

18.Modifikasi Screen 2000 Flow Logic

Sebelum

PROCESS BEFORE OUTPUT.

* MODULE STATUS_2000.

*

PROCESS AFTER INPUT.

* MODULE USER_COMMAND_2000.



Setelah

PROCESS BEFORE OUTPUT.

 MODULE STATUS_2000.

*

PROCESS AFTER INPUT.

 MODULE USER_COMMAND_2000.





19.Klik "abap_tutorial0019" untuk menyimpan Screen 2000

20.Klik ganda pada text "STATUS_2000"

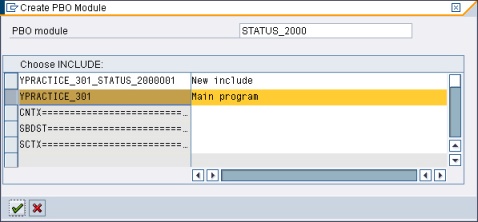

21.Seleksi "YPRACTICE_301" dan klik "abap_tutorial0025" untuk membuat modul baru STATUS_2000

ar0029

22.Modifikasi Modul "STATUS_2000 output"

Sebelum

*&---------------------------------------------------------------------*

*&      Module  STATUS_2000  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

module STATUS_2000 output.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.



endmodule.                 " STATUS_2000  OUTPUT



Setelah

*&---------------------------------------------------------------------*

*&      Module  STATUS_2000  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

module STATUS_2000 output.

  SET PF-STATUS 'ST_2000'.

*  SET TITLEBAR 'xxx'.



endmodule.                 " STATUS_2000  OUTPUT



23.Kembali ke Screen 2000 Flow Logic

24.Klik Ganda pada text "USER_COMMAND_2000"

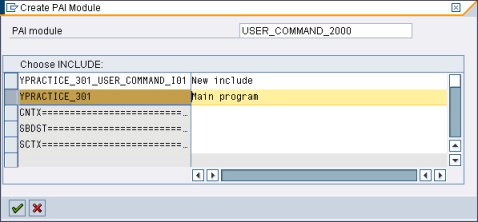

25.Seleksi "YPRACTICE_301" dan Klik "abap_tutorial0025" untuk membuat modul baru USER_COMMAND_2000

ar0030

26.Modifikasi modul "USER_COMMAND_2000 input"

Sebelum

*&---------------------------------------------------------------------*

*&      Module  USER_COMMAND_2000  INPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

module USER_COMMAND_2000 input.



endmodule.                 " USER_COMMAND_2000  INPUT



Setelah

*&---------------------------------------------------------------------*

*&      Module  USER_COMMAND_2000  INPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE user_command_2000 INPUT.

  save_ok = ok_code.

  CLEAR ok_code.



  CASE save_ok.

    WHEN 'BACK'.

      LEAVE TO SCREEN 0.

    WHEN OTHERS.



  ENDCASE.



  CLEAR ok_code.

ENDMODULE.                 " USER_COMMAND_2000  INPUT



27.Klik "abap_tutorial0019" dan Klik "abap_tutorial0031"

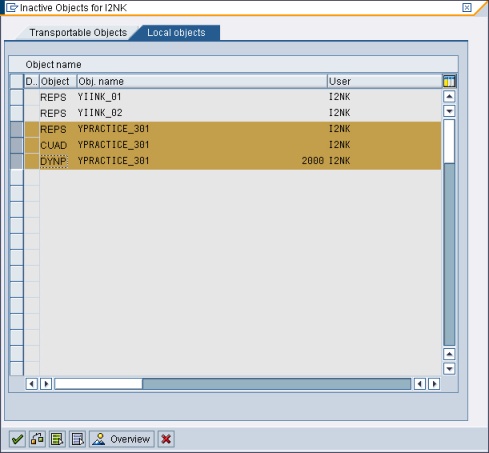

28.Seleksi "REPS", "CUAD" and "DYNP"

ar0032

29.Klik "abap_tutorial0025" untuk mengaktivasi program

30.Test dan Jalankan Program

31.Membuat T-Code "YP301"

32.Selesai



Hasil

▪Seleksi Input

ar0033

▪Output

ar0034
