Description |
|
1 |
Difficulty Level |
Easy |
2 |
ActiveX (OCX) library |
Microsoft Winsock Control 6.0 |
1.Create Folder \Desktop-Application\
2.Run Microsoft Visual Basic 6.0
3.Create New Project, select New > Standard EXE
4.Save Project into \Desktop-Application\Practice101\ , then change "Form1.frm" to "Main1.frm" and "Project1.vbp" to "Practice101.vbp"
5.Rename Project name with "Practice101"
6.Rename File name and Form name from "Form1" to "Main1"
7.Add and design a components according to component list bellow
No |
Component |
Properties |
Value |
Design |
1 |
Button |
Name |
bConnect |
|
|
|
Caption |
&Connect |
|
2 |
TextBox |
Name |
eIPAddress |
|
|
|
Text |
127.0.0.1 |
|
3 |
TextBox |
Name |
sePort1 |
|
|
|
Value |
10001 |
|
5 |
Button |
Name |
bLogin |
|
|
|
Caption |
&Login |
|
|
|
Enabled |
False |
|
5 |
TextBox |
Name |
Memo1 |
|
|
|
ScrollBars |
3 - Both |
|
|
|
Multiline |
True |
|
6 |
TextBox |
Name |
Memo2 |
|
|
|
ScrollBars |
3 - Both |
|
|
|
Multiline |
True |
|
7 |
TextBox |
Name |
mSLog |
|
|
|
ScrollBars |
2 - Vertical |
|
|
|
Multiline |
True |
|
8 |
Winsock |
Name |
TCpClient |
8.Create New Module "mdlGlobalVariabel" and save the Module
'SGC Info
Public isConnected, isLogin As Boolean
'SGC Login Variable
Public cEncryptionType As String
Public cUserID, cPassword, cCompanyCode, cProgramType, cProgramCode As String
'SGC Command
Public ClientString, LoginString As String
9.Open the Code of Main1.frm and Write this code bellow
Private Sub Form_Load()
Dim NumDate, NumTime As Double
mSLog.Text = "Run Application"
NumDate = Format(Date, "###")
NumTime = Format(Time, "###0.0000000000")
ClientString = "<?xml version=""1.0"" encoding=""utf-8""?>"
ClientString = ClientString & vbCrLf & "<SGC_CLIENT DATE=""" & NumDate & """ TIME=""" & NumTime & """>"
ClientString = ClientString & vbCrLf & " <CLIENT_STRING COMMAND=""Get Server String"" USERNAME="""" PASSWORD="""" COMPANY_CODE="""" PROGRAM_TYPE="""" PROGRAM_CODE="""" PARAMETER1="""" PARAMETER2="""" PARAMETER3=""""/>"
ClientString = ClientString & vbCrLf & "</SGC_CLIENT>"
ClientString = ClientString & vbCrLf & " " 'Add empty line after "</SGC_CLIENT>"
'SGC Server has an authorization system. The authorization system will be blocked and limited the connection from any SGC Client connection.
'There are a several required field to Login and go through the authorization, such as :
'=> USERNAME=""
'=> PASSWORD=""
'=> COMPANY_CODE=""
'=> PROGRAM_TYPE=""
'=> PROGRAM_CODE=""
'If the required fields value doesn't match with authorization configuration at SGC Server then the connection will be refuse (Login Failed).
'Assume that you are not login to SGC Server, then Login String always automaticaly filled with this value bellow :
'=> USERNAME="DEMO"
'=> PASSWORD="123456"
'=> COMPANY_CODE="1000"
'=> PROGRAM_TYPE="Examples"
'=> PROGRAM_CODE="Client_Example_01"
'Set Default SGC Client Login for Demo Only
cUserID = "DEMO"
cPassword = "123456"
cCompanyCode = "1000"
cProgramType = "Examples"
cProgramCode = "Client_Example_01"
LoginString = "<?xml version=""1.0"" encoding=""utf-8""?>"
LoginString = LoginString & vbCrLf & "<SGC_CLIENT DATE=""" & NumDate & """ TIME=""" & NumTime & """>"
LoginString = LoginString & vbCrLf & " <CLIENT_STRING COMMAND=""Login"" " & _
"USERNAME=""" & cUserID & """ " & _
"PASSWORD=""" & cPassword & """ " & _
"COMPANY_CODE=""" & cCompanyCode & """ " & _
"PROGRAM_TYPE=""" & cProgramType & """ " & _
"PROGRAM_CODE=""" & cProgramCode & """ " & _
"PARAMETER1="""" PARAMETER2="""" PARAMETER3=""""/>"
LoginString = LoginString & vbCrLf & "</SGC_CLIENT>"
LoginString = LoginString & vbCrLf & " " 'Add empty line after "</SGC_CLIENT>"
End Sub
10.Add Event Click at bConnect button and then write code to connect and disconnect to SGC Server
Private Sub bConnect_Click()
If bConnect.Caption = "&Connect" Then
mSLog.Text = mSLog.Text & vbCrLf & "Try connect to SGC Server"
Memo1.Text = ""
Memo2.Text = ""
On Error GoTo LogA
'Connect to SGC Server
TCpClient.RemoteHost = eIPAddress.Text
TCpClient.RemotePort = sePort1.Text
TCpClient.Connect
Else
TCpClient_Close
End If
Exit Sub
LogA:
Msg = Err.Description
If Msg = "" Then
Msg = "Unkown error !!"
End If
MsgBox Msg, vbExclamation
TCpClient_Close
End Sub
11.Add Event Click at bLogin button and then write code to send "Login String"
Private Sub bLogin_Click()
Memo1.Text = ""
Memo2.Text = ""
'Sending command to SGC Server
TCpClient.SendData LoginString
'Display XML Data
Memo1.Text = LoginString
End Sub
12.Add Event Connect at TCPClient and then write code for condition after application connected to SGC Server
Private Sub TCpClient_Connect()
'Set Component Atribute
bConnect.Caption = "&Disconnect"
mSLog.Text = mSLog.Text & vbCrLf & "Connections is succeed"
eIPAddress.Enabled = False
sePort1.Enabled = False
bLogin.Enabled = True
isConnected = True
bLogin.Enabled = True
'Sending command to SGC Server
TCpClient.SendData ClientString
'Display XML Data
Memo1.Text = ClientString
End Sub
13.Add Event Close at TCPClient and then write code for condition after application disconnected from SGC Server
Private Sub TCpClient_Close()
TCpClient.Close
'Set Component Atribute
bConnect.Caption = "&Connect"
mSLog.Text = mSLog.Text & vbCrLf & "Disconnected form server"
eIPAddress.Enabled = True
sePort1.Enabled = True
bLogin.Enabled = False
isConnected = False
bLogin.Enabled = False
Memo1.Text = ""
Memo2.Text = ""
End Sub
14.Add Event DataArrival at TCPClient and then write code for condition when application receives data from SGC Server
Private Sub TCpClient_DataArrival(ByVal bytesTotal As Long)
Dim tmpReceive As String
mSLog.Text = mSLog.Text & vbCrLf & "Receiving data form SGC Server"
TCpClient.GetData tmpReceive, vbString
Memo2.Text = Memo2.Text & tmpReceive & vbCrLf
End Sub
15.Add Event Error at TCPClient and then write code for condition when TCPClient goes wrong
Private Sub TCpClient_Error(ByVal Number As Integer, Description As String, ByVal Scode As Long, ByVal Source As String, ByVal HelpFile As String, ByVal HelpContext As Long, CancelDisplay As Boolean)
mSLog.Text = mSLog.Text & vbCrLf & "Error : " & Description
End Sub
16.Save and Run the application

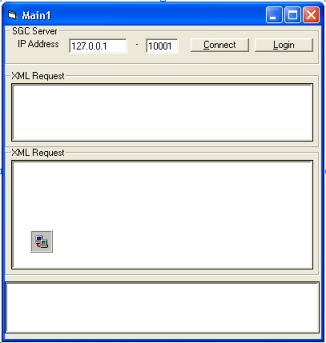

▪Screen 1. Connected to SGC Server

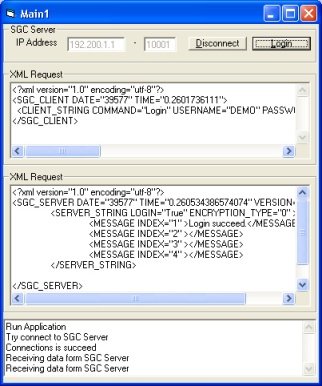

▪Screen 2. Login to SGC Server
