All About ABAP Technique > English > Function Module for RFC > Create YFM_RFC_PRACTICE

Objective

▪Create Structure

▪Create Function

▪Test Run

Transaction Code

SE11 - ABAP Dictionary

SE37 - Function Builder

Support

Create Structure

Create new Structure of "YST_RANGE_MATKL"

Display Steps

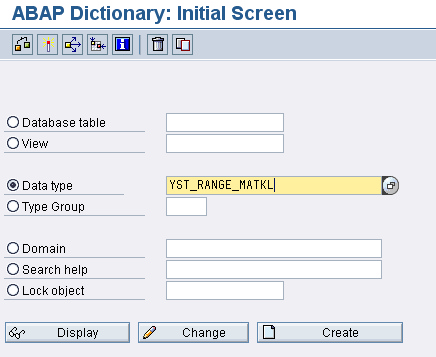

▪Open t-Code "SE11"

▪Enter Data Type "YST_RANGE_MATKL"

rfc0042

▪Click ""

▪Select "Structure"

rfc0043

▪Fill Short Description "Structure for RANGE for Material Group"

rfc0044

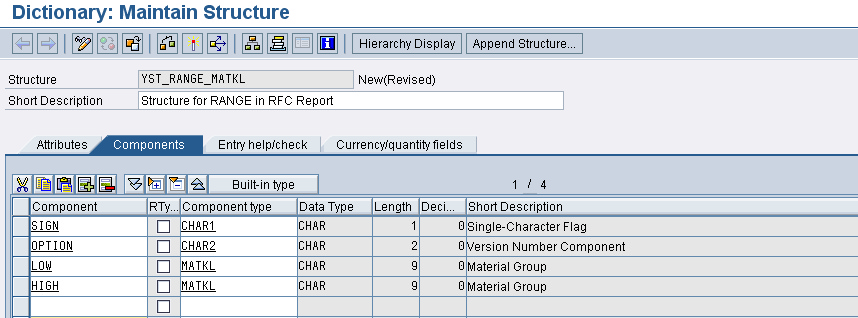

▪Add Commponent/Field like this bellow

rfc0045

▪Click "" to save structure

Notes : You can save to Existing Package or Local Object

▪Click "" to active structure

Create new Structure of "YST_RANGE_MATNR"

Display Steps

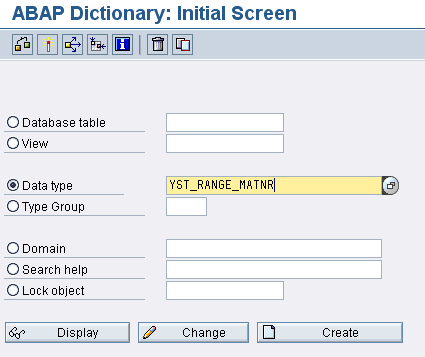

▪Open t-Code "SE11"

▪Enter Data Type "YST_RANGE_MATNR"

rfc0046

▪Click ""

▪Select "Structure"

rfc0047

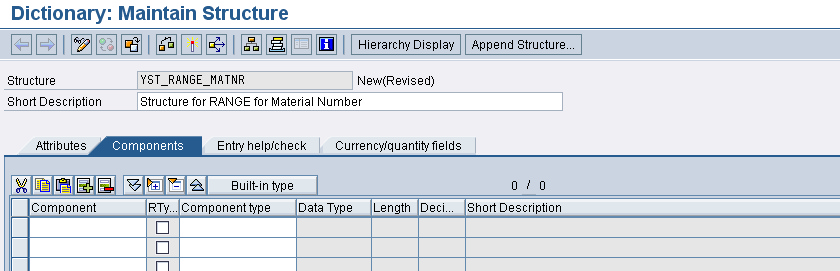

▪Fill Short Description "Structure for RANGE for Material Number"

rfc0048

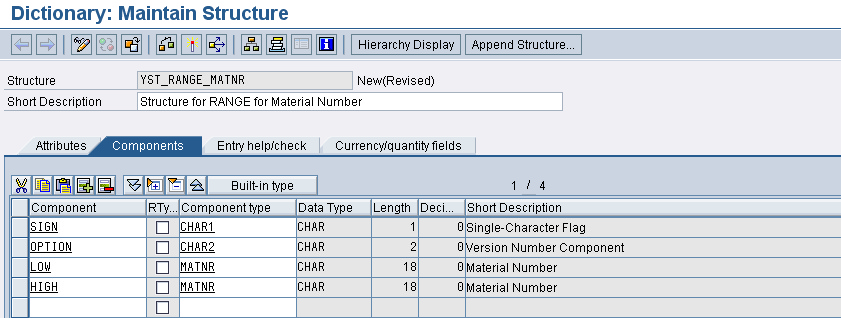

▪Add Commponent/Field like this bellow

rfc0049

▪Click "" to save structure

Notes : You can save to Existing Package or Local Object

▪Click "" to active structure

Create Function

1.Open t-Code "SE37"

2.Copy Function "YFM_RFC_PRACTICE_101" to "YFM_RFC_PRACTICE_102"

rfc0024

3.Click ""

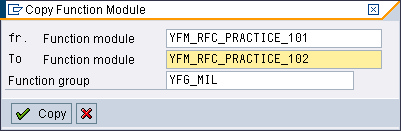

4.Fill to Function module with "YFM_RFC_PRACTICE_102"

rfc0038

5.Click "" to copy and save function

6.Click "" to change function

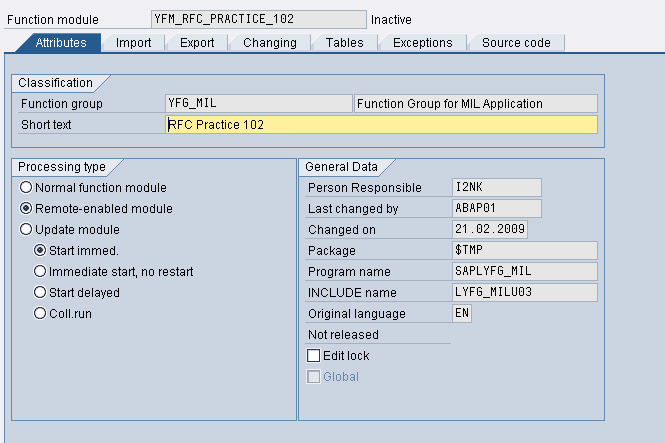

7.Edit the Short text with "RFC Practice 102"

rfc0040

8.Delete import variable like this screen capture bellow

Before

rfc0027

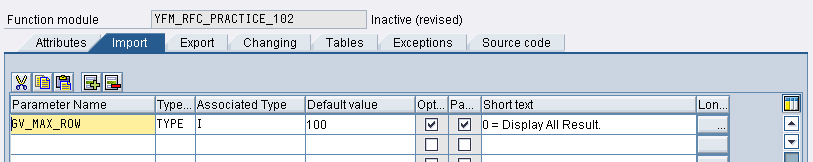

After

rfc0041

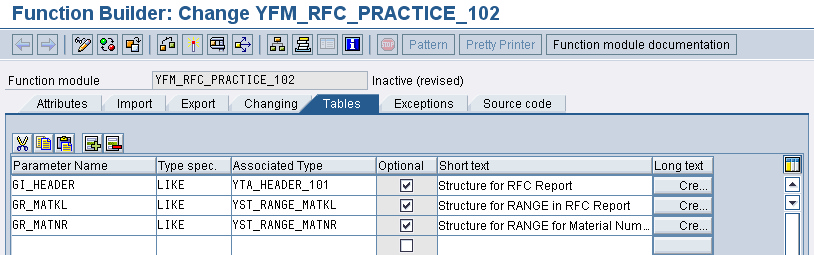

9.Add tables variable like this screen capture bellow

rfc0050

10.Add new Source Code, Copy and paste this source code bellow to "Source Code" tab

View Source Code without using "UP TO gv_max_row ROWS"

FUNCTION yfm_rfc_practice_102.

*"----------------------------------------------------------------------

*"*"Local interface:

*" IMPORTING

*" VALUE(GV_MAX_ROW) TYPE I DEFAULT 100

*" TABLES

*" GI_HEADER STRUCTURE YTA_HEADER_101 OPTIONAL

*" GR_MATKL STRUCTURE YST_RANGE_MATKL OPTIONAL

*" GR_MATNR STRUCTURE YST_RANGE_MATNR OPTIONAL

*"----------------------------------------------------------------------

DATA: gi_makt TYPE STANDARD TABLE OF makt WITH HEADER LINE,

gi_t006a TYPE STANDARD TABLE OF t006a WITH HEADER LINE.

DATA: lv_counter TYPE i.

* Collect Master Material

SELECT matnr matkl bismt meins

INTO CORRESPONDING FIELDS OF TABLE gi_header

FROM mara

WHERE

matkl IN gr_matkl AND

matnr IN gr_matnr.

* Collect Material Decription

SELECT matnr maktx

INTO CORRESPONDING FIELDS OF TABLE gi_makt

FROM makt

FOR ALL ENTRIES IN gi_header

WHERE

matnr = gi_header-matnr AND

spras = sy-langu.

* Collect Measurement Text

SELECT msehi mseht

INTO CORRESPONDING FIELDS OF TABLE gi_t006a

FROM t006a

FOR ALL ENTRIES IN gi_header

WHERE

msehi = gi_header-meins AND

spras = sy-langu.

*Get other requirement information

LOOP AT gi_header.

* Max Row Checking

ADD 1 TO lv_counter.

IF lv_counter <= gv_max_row OR gv_max_row = 0.

* Get Material Description

READ TABLE gi_makt WITH KEY matnr = gi_header-matnr.

IF sy-subrc = 0.

gi_header-maktx = gi_makt-maktx.

ENDIF.

* Get Measurement Text

READ TABLE gi_t006a WITH KEY msehi = gi_header-meins.

IF sy-subrc = 0.

gi_header-mseht = gi_t006a-mseht.

ENDIF.

MODIFY gi_header.

ELSE.

DELETE gi_header.

ENDIF.

ENDLOOP.

ENDFUNCTION.

View Source Code using "UP TO gv_max_row ROWS"

FUNCTION yfm_rfc_practice_102.

*"----------------------------------------------------------------------

*"*"Local interface:

*" IMPORTING

*" VALUE(GV_MAX_ROW) TYPE I DEFAULT 100

*" TABLES

*" GI_HEADER STRUCTURE YTA_HEADER_101 OPTIONAL

*" GR_MATKL STRUCTURE YST_RANGE_MATKL OPTIONAL

*" GR_MATNR STRUCTURE YST_RANGE_MATNR OPTIONAL

*"----------------------------------------------------------------------

DATA: gi_makt TYPE STANDARD TABLE OF makt WITH HEADER LINE,

gi_t006a TYPE STANDARD TABLE OF t006a WITH HEADER LINE.

* DATA: lv_counter TYPE i.

* Collect Master Material

SELECT matnr matkl bismt meins

UP TO gv_max_row ROWS

INTO CORRESPONDING FIELDS OF TABLE gi_header

FROM mara

WHERE

matkl IN gr_matkl AND

matnr IN gr_matnr.

* Collect Material Decription

SELECT matnr maktx

INTO CORRESPONDING FIELDS OF TABLE gi_makt

FROM makt

FOR ALL ENTRIES IN gi_header

WHERE

matnr = gi_header-matnr AND

spras = sy-langu.

* Collect Measurement Text

SELECT msehi mseht

INTO CORRESPONDING FIELDS OF TABLE gi_t006a

FROM t006a

FOR ALL ENTRIES IN gi_header

WHERE

msehi = gi_header-meins AND

spras = sy-langu.

*Get other requirement information

LOOP AT gi_header.

* Get Material Description

READ TABLE gi_makt WITH KEY matnr = gi_header-matnr.

IF sy-subrc = 0.

gi_header-maktx = gi_makt-maktx.

ENDIF.

* Get Measurement Text

READ TABLE gi_t006a WITH KEY msehi = gi_header-meins.

IF sy-subrc = 0.

gi_header-mseht = gi_t006a-mseht.

ENDIF.

MODIFY gi_header.

ENDLOOP.

ENDFUNCTION.

11.Save and activate the function

Test Run

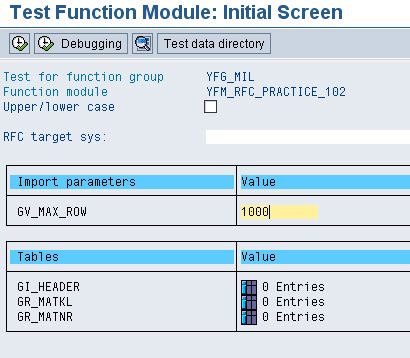

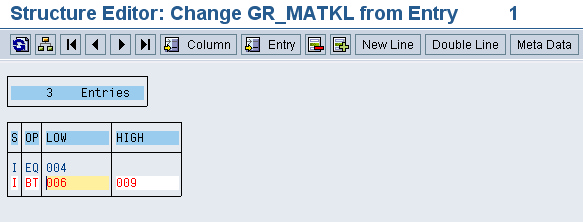

▪Input

rfc0051

rfc0052

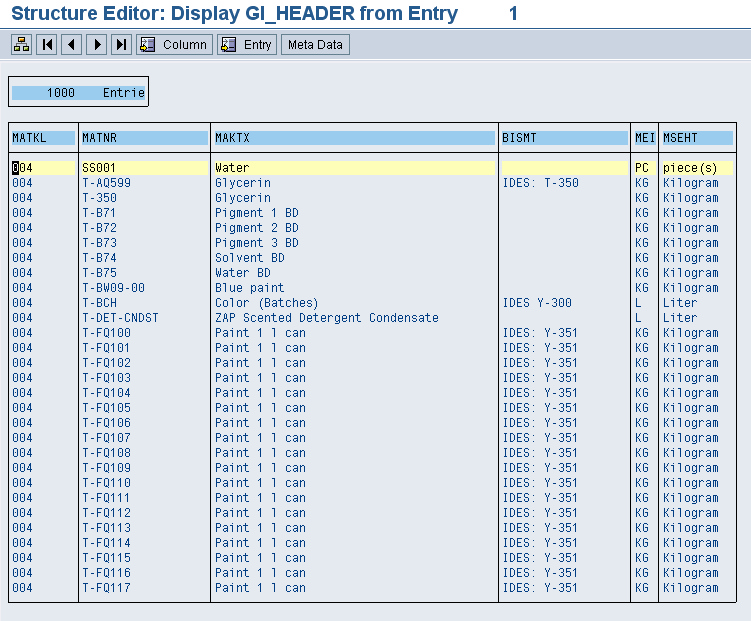

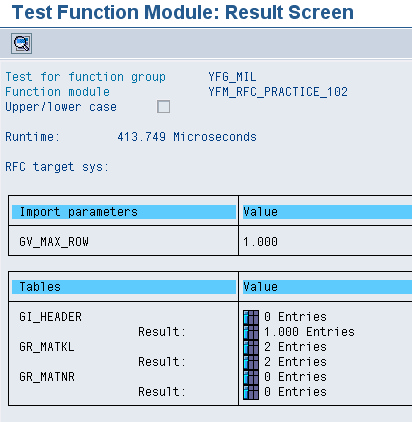

▪Output

rfc0053

rfc0054
