Objective |
|
SGC Server |
v1.0, v1.1 |
Support |
Source Code is available (Download) |
No |
Description |
|
1 |
Difficulty Level |
Easy |
2 |
Delphi Component |
TButton, TEdit, TCheckBox, TSpinEdit, TGroupBox, TMemo |
3 |
Indy Client Component |
TIdTCPClient, TIdAntiFreeze |
1.Create Folder \Desktop-Application\
2.Run Delphi Application

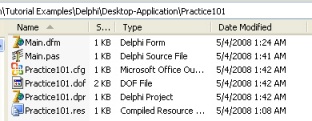

3.Save Unit as Main.pas and Project as Practice101.dpr to folder \Desktop-Application\Practice101\
4.Rename Form1 to Main1

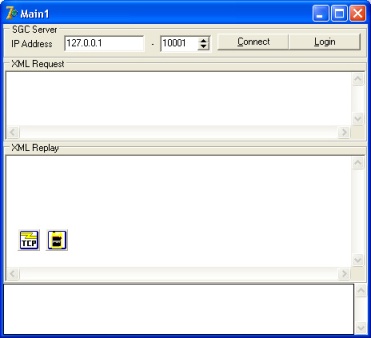

5.Add and design a components according to component list bellow
No |
Component |
Properties |
Value |
Design |
1 |
TButton |
Name |
bConnect |
|
|
|
Caption |
&Connect |
|
2 |
TEdit |
Name |
eIPAddress |
|
|
|
Text |
127.0.0.1 |
|
3 |
TSpinEdit |
Name |
sePort1 |
|
|
|
Value |
10001 |
|
5 |
TButton |
Name |
bLogin |
|
|
|
Caption |
&Login |
|
|
|
Enabled |
False |
|
5 |
TMemo |
Name |
Memo1 |
|
6 |
TMemo |
Name |
Memo2 |
|
7 |
TMemo |
Name |
mSLog |
|
8 |
TidTCpClient |
Name |
TCPClient |
|
|
|
Host |
127.0.0.1 |
|
9 |
TIdAntiFreeze |
Name |
IdAntiFreeze |
6.Create Global Variable "isConnected" and "isLogin" as boolean and write it bellow code "Main1: TMain1;"
7.Create Global Variable "ClientString" and "LoginString" as TStringList and SGC Login Variables
var
Main1: TMain1;
isConnected, isLogin : boolean;
ClientString,LoginString:TStringList;
//SGC Login Variables
cEncryptionType:string;
cUserID,cPassword,cCompanyCode,
cProgramType, cProgramCode:string;
8.Create new Procedure "SendRequest" for sending Client Command to SGC Server and receive the response from SGC Server.
...
public
{ Public declarations }
procedure SendRequest(strRequest,strReceive:TStringList);
end;
...
procedure TMain1.SendRequest(strRequest,strReceive:TStringList);
var strTemp : string;
whileLimit : Extended;
begin
whileLimit:=0;
try
mSLog.Lines.Add('Receiving data form SGC Server');
TCPClient.Write(strRequest.Text);
//Read Connection and ended with '</SGC_SERVER>'
while not TCPClient.ClosedGracefully do
begin
whileLimit:=whileLimit+1;
try
strTemp:=TCPClient.ReadLn;
strReceive.Add(strTemp);
if strTemp = '</SGC_SERVER>' then break;
except
break;
end;
if whileLimit > 1000000 then
begin
strTemp:='';
break;
end;
end;
mSLog.Lines.Add('Data received');
except
mSLog.Lines.Add('Error While Receiving Data');
end;
end;
9.Add Event OnClick at bConnect button and then write code to connect and disconnect to SGC Server
procedure TMain1.bConnectClick(Sender: TObject);
var tmpReceive:TStringList;
begin
if bConnect.Caption = '&Connect' then
begin
mSLog.Lines.Add('Try connect to SGC Server');
try
//Connect to SGC Server
TCPClient.Host := eIPAddress.Text;
TCPClient.Port := sePort1.Value;
TCPClient.Connect;
//Create temporary data
tmpReceive:=TStringList.Create;
//Sending command to SGC Server
SendRequest(ClientString,tmpReceive);
//Display XML Data
Memo1.Lines.Text:= ClientString.Text;
Memo2.Lines.Text:= tmpReceive.Text;
//Free temporary data
tmpReceive.Destroy;
except
mSLog.Lines.Add('Connection Failed');
end;
end
else
begin
TCPClient.Disconnect;
end;
end;
10.Add Event OnConnected at TCPClient and then write code for condition after application connected to SGC Server
procedure TMain1.TCPClientConnected(Sender: TObject);
begin
bConnect.Caption := '&Disconnect';
eIPAddress.Enabled:=false;
sePort1.Enabled:=false;
bLogin.Enabled:=true;
isConnected:=true;
mSLog.Lines.Add('Connections is succeed');
end;
11.Add Event OnDisconnected at TCPClient and then write code for condition after application disconnected from SGC Server
procedure TMain1.TCPClientDisconnected(Sender: TObject);
begin
bConnect.Caption := '&Connect';
eIPAddress.Enabled:=true;
sePort1.Enabled:=true;
bLogin.Enabled:=false;
isLogin:=false;
isConnected:=false;
Memo1.Lines.Clear;
Memo2.Lines.Clear;
mSLog.Lines.Add('Disconnected form server');
end;
12.Add Event Create at Main Form and then write code for Client Command "Client String" and "Login String"
procedure TMain1.FormCreate(Sender: TObject);
begin
ClientString:=TStringList.Create;
ClientString.Add('<?xml version="1.0" encoding="utf-8"?>');
ClientString.Add('<SGC_CLIENT DATE="' +FloatToStr(Date)+ '" TIME="' +FloatToStr(Time)+ '">');
ClientString.Add(' <CLIENT_STRING COMMAND="Get Server String" USERNAME="" PASSWORD="" COMPANY_CODE="" PROGRAM_TYPE="" PROGRAM_CODE="" PARAMETER1="" PARAMETER2="" PARAMETER3=""/>');
ClientString.Add('</SGC_CLIENT>');
ClientString.Add(' ');//Add empty line after '</SGC_CLIENT>'
{
SGC Server has an authorization system. The authorization system will be blocked and limited the connection from any SGC Client connection.
There are a several required field to Login and go through the authorization, such as :
=> USERNAME=""
=> PASSWORD=""
=> COMPANY_CODE=""
=> PROGRAM_TYPE=""
=> PROGRAM_CODE=""
If the required fields value doesn't match with authorization configuration at SGC Server then the connection will be refuse (Login Failed).
Assume that you are not login to SGC Server, then Login String always automaticaly filled with this value bellow :
=> USERNAME="DEMO"
=> PASSWORD="123456"
=> COMPANY_CODE="1000"
=> PROGRAM_TYPE="Examples"
=> PROGRAM_CODE="Client_Example_01"
}
//Set Default SGC Client Login for Demo Only
cUserID:= 'DEMO';
cPassword:= '123456';
cCompanyCode:= '1000';
cProgramType:= 'Examples';
cProgramCode:= 'Client_Example_01';
LoginString:=TStringList.Create;
LoginString.Add('<?xml version="1.0" encoding="utf-8"?>');
LoginString.Add('<SGC_CLIENT DATE="' +FloatToStr(Date)+ '" TIME="' +FloatToStr(Time)+ '">');
LoginString.Add(' <CLIENT_STRING COMMAND="Login" '+
'USERNAME="'+cUserID+'" '+
'PASSWORD="'+cPassword+'" '+
'COMPANY_CODE="'+cCompanyCode+'" '+
'PROGRAM_TYPE="'+cProgramType+'" '+
'PROGRAM_CODE="'+cProgramCode+'" '+
'PARAMETER1="" PARAMETER2="" PARAMETER3=""/>');
LoginString.Add('</SGC_CLIENT>');
LoginString.Add(' ');//Add empty line after '</SGC_CLIENT>'
end;
13.Add Event OnClick at bLogin button and then write code to send "Login String"
procedure TMain1.bLoginClick(Sender: TObject);
var tmpReceive:TStringList;
begin
//Create temporary data
tmpReceive:=TStringList.Create;
//Sending command to SGC Server
SendRequest(LoginString,tmpReceive);
//Display XML Data
Memo1.Lines.Text:= LoginString.Text;
Memo2.Lines.Text:= tmpReceive.Text;
//Free temporary data
tmpReceive.Destroy;
end;
Note : When you has login to SGC Server then you can execute another SGC Command, such as "Get User Menu List", Get Function Info" and "Run Function".
14.Save and Run the application
▪Screen 1. Connected to SGC Server
▪Screen 2. Login to SGC Server
