<< Click to Display Table of Contents >> Navigation:  All About SAP Interface > SAP r/3 and Delphi > Create Desktop Application using SGC Server > Basic Knowledge > Practice (102) - Test All SGC Command





Creating Program

1.Copy Folder \Practice101\  to  \Practice102\

2.Run file \Practice102\Practice101.dpr

3.Save as Project of "Practice101.dpr" to "Practice102.dpr"

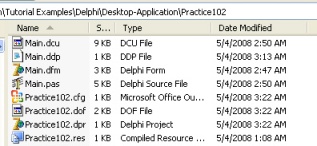

4.Delete all file with name "Practice101" at folder  \Practice102\, and the result like this bellow

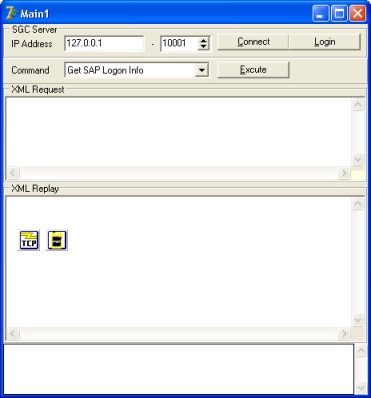

5.Add and design a components to component list bellow



6.Modified Event OnConnected at TCPClient and add code of " bExecute.Enabled:=true;"

Before

  bConnect.Caption := '&Disconnect';

  eIPAddress.Enabled:=false;

  sePort1.Enabled:=false;

  bLogin.Enabled:=true;

  isConnected:=true;



  mSLog.Lines.Add('Connections is succeed');

After

  bConnect.Caption := '&Disconnect';

  eIPAddress.Enabled:=false;

  sePort1.Enabled:=false;

  bLogin.Enabled:=true;

  bExecute.Enabled:=true;

  isConnected:=true;



  mSLog.Lines.Add('Connections is succeed');



7.Modified Event OnDiconnected at TCPClient and add code of " bExecute.Enabled:=false;"

Before

  bConnect.Caption := '&Connect';

  eIPAddress.Enabled:=true;

  sePort1.Enabled:=true;

  bLogin.Enabled:=false;

  isLogin:=false;

  isConnected:=false;



  Memo1.Lines.Clear;

  Memo2.Lines.Clear;



  mSLog.Lines.Add('Disconnected form server');

After

  bConnect.Caption := '&Connect';

  eIPAddress.Enabled:=true;

  sePort1.Enabled:=true;

  bLogin.Enabled:=false;

  bExecute.Enabled:=false;

  isLogin:=false;

  isConnected:=false;



  Memo1.Lines.Clear;

  Memo2.Lines.Clear;



  mSLog.Lines.Add('Disconnected form server');



8.Add Event OnClick at bExecute button and then write code to executing a selected Command at cbCommand

procedure TMain1.bExecuteClick(Sender: TObject);

var tmpRequest,tmpReceive:TStringList;

    Parameter1,Parameter2,Parameter3:string;

begin

  {

    In SGC Server version 1.0, Parameters is used for "Get Function Info" and "Run Function" command.

    Parameter 1 = Menu Function

    Parameter 2 = Function Name

    Note: First, you must register the SAP Function Module (RFC/BAPI) in SGC Server.

    Open Client_Example_02 to show an advanced demo about "Run Function" command.

  }

  //Set Parameters

  if (cbCommand.Text='Get Function Info') or (cbCommand.Text='Run Function') then

  begin

    Parameter1:='SAP Tools';     //Menu Function

    Parameter2:='RFC_READ_TABLE';//Function Name

  end;



  //Create temporary data

  tmpRequest:=TStringList.Create;

  tmpReceive:=TStringList.Create;



  //Write the Top of SGC Command

  tmpRequest.Add('<?xml version="1.0" encoding="utf-8"?>');

  tmpRequest.Add('<SGC_CLIENT DATE="' +FloatToStr(Date)+ '" TIME="' +FloatToStr(Time)+ '">');

  tmpRequest.Add('  <CLIENT_STRING COMMAND="'+cbCommand.Text+'" '+

                                   'USERNAME="'+cUserID+'" '+

                                   'PASSWORD="'+cPassword+'" '+

                                   'COMPANY_CODE="'+cCompanyCode+'" '+

                                   'PROGRAM_TYPE="'+cProgramType+'" '+

                                   'PROGRAM_CODE="'+cProgramCode+'" '+

                                   'PARAMETER1="'+Parameter1+'" '+

                                   'PARAMETER2="'+Parameter2+'" '+

                                   'PARAMETER3="'+Parameter3+'"/>');

  //Addtional String for Command of 'Run Function'

  if cbCommand.Text='Run Function' then

  begin

    {

      This's example of XML code for executing 'RFC_READ_TABLE' function.

    }

    tmpRequest.Add('<FUNCTION>');

    tmpRequest.Add('    <IMPORTS>');

    tmpRequest.Add('      <IMPORT NAME="QUERY_TABLE" DEFAULT_VALUE="T001" STRUCTURE="False"/>');

    tmpRequest.Add('      <IMPORT NAME="DELIMITER" DEFAULT_VALUE=";" STRUCTURE="False"/>');

    tmpRequest.Add('      <IMPORT NAME="ROWSKIPS" DEFAULT_VALUE="0" STRUCTURE="False"/>');

    tmpRequest.Add('      <IMPORT NAME="ROWCOUNT" DEFAULT_VALUE="1000" STRUCTURE="False"/>');

    tmpRequest.Add('    </IMPORTS>');

    tmpRequest.Add('    <TABLES>');

    tmpRequest.Add('      <TABLE NAME="OPTIONS">');

    tmpRequest.Add('        <LINE TEXT="SPRAS = &apos;EN&apos;"/>');

    tmpRequest.Add('      </TABLE>');

    tmpRequest.Add('    </TABLES>');

    tmpRequest.Add('  </FUNCTION>');



  end;

  tmpRequest.Add('</SGC_CLIENT>');



  //Don't forget to adding an empty line after '</SGC_CLIENT>'

  tmpRequest.Add(' ');



  //Sending command to SGC Server

  SendRequest(tmpRequest,tmpReceive);



  //Display XML Data

  Memo1.Lines.Text:= tmpRequest.Text;

  Memo2.Lines.Text:= tmpReceive.Text;



  //Free temporary data

  tmpRequest.Destroy;

  tmpReceive.Destroy;



end;



9.Save and Run the application



Result

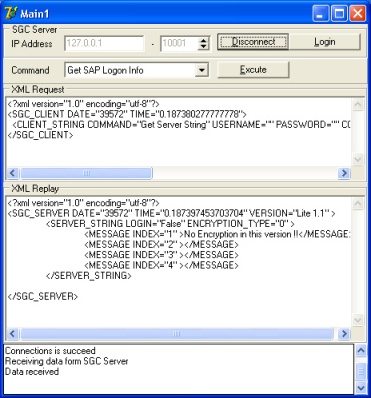

▪Screen 1. Connected to SGC Server

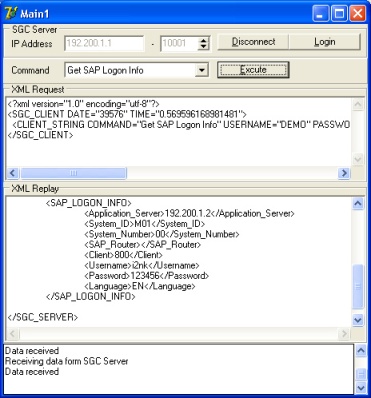

▪Screen 2. Execute Command of "Get Sap Logon Info"

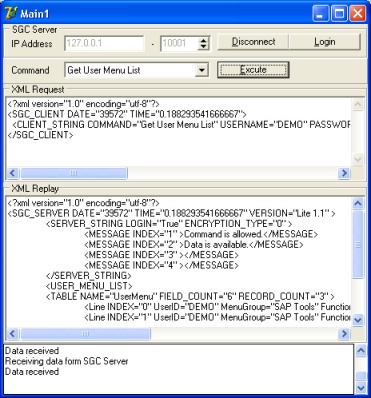

▪Screen 3. Execute Command of "Get User Menu List"

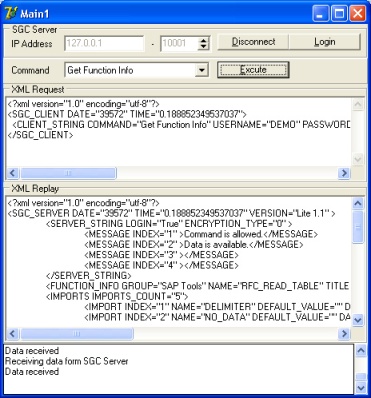

▪Screen 4. Execute Command of "Get Function Info"

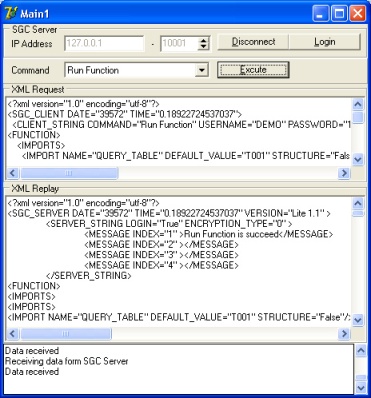

▪Screen 5. Execute Command of "Run Function"
