Install SAP ActiveX in Delphi 6 and 7

<< Click to Display Table of Contents >>

Navigation:  All About SAP Interface > SAP r/3 and Delphi > Create SAP - Delphi Connection using SAP ActiveX >

Install SAP ActiveX in Delphi 6 and 7

Objective

Added SAP GUI ActiveX (SAP Login Control and SAP Remote Function Call Control)

▪Component Configuration

▪Check Installed SAP Component

Support





Requirement

All step is already tested using this requirement

1.SAP GUI 6.40 Patch Level 0-21 or SAP GUI 7.10 Patch Level 0 (download)

2.Borland Delphi 6 (Update 1 and 1) or Borland Delphi 7 (download)

3.Windows 2000 or XP



Component Configuration

1.Run Delphi Application

2.Open Import ActiveX,

Component > Import ActiveX Control…

3.Choose “ SAP Logon Control “

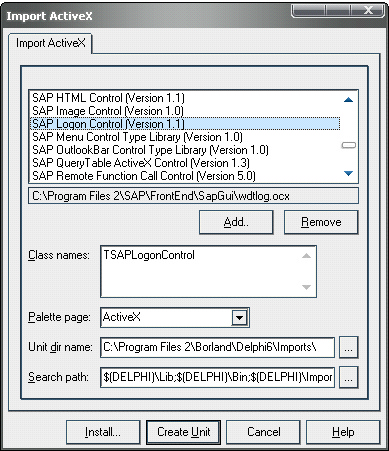

delphi0016

4.Press “ install “ button

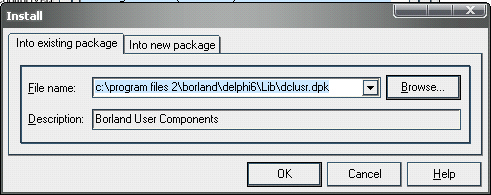

delphi0017

5.Press “ Ok “ button

6.Do step 2 until 5 again, for installing “SAP Remote Function Call Control “

7.Open Environment Options,

> Tools > Environment Options …

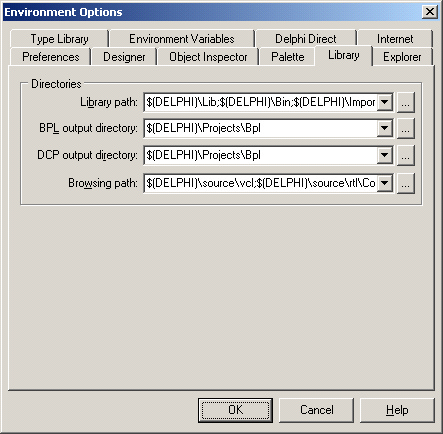

delphi0026



8.Add Directories of Library path with “…Delphi Installation Path… \Borland\Delphi6\LibDelphi2”

9.Close Delphi



Check Installed SAP Component

1.Created a new Project

2.Look at in " ActiveX" palette

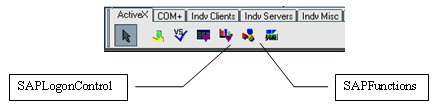

delphi0018

3.If all there TSAPLogonControl and TSAPFunction button, it's mean you have been succeed install SAP ActiveX in Delphi (6 or 7)
