Objektif |
▪Call Method "ycl_report_mm=>get_data" |
Kode Transaksi |
|
Tabel |
MARA - General Material Data (Data Material Umum) |
Support |
|
Kontributor |
Danar Andri Prasetyo ( danaruto131@yahoo.com ) |
1.Buka SE38
2.Kopi Program "SAPBC400RUD_ALV_GRID" menjadi "ZSAPBC400RUD_ALV_GRID_MM"
3.Seleksi Semua Object
4.Klik "
" dan simpan di local object
5.Ubah Nama Program "ZSAPBC400RUD_ALV_GRID_MM"
6.Simpan, Aktifkan dan Tes jalankan program
7.Ketika kita klik pada data,tidak muncul pesan, maka kita akan mengubahnya agar keluar
8.Pertama kita modifikasi deklarasi tabel
Sebelum
tables sbc400_carrier.
Setelah
*tables sbc400_carrier.
9.Tambahkan Sintak sebelum start-of-selection
TABLES: mara.
INCLUDE zcl_event_receiver.
TYPE-POOLS: icon, ole2.
TYPES : BEGIN OF gt_header,
icon(4),
END OF gt_header.
DATA: tc_header TYPE REF TO cl_gui_custom_container,
tg_header TYPE REF TO cl_gui_alv_grid,
tc_detail TYPE REF TO cl_gui_custom_container,
tg_detail TYPE REF TO cl_gui_alv_grid,
go_event_receiver_header TYPE REF TO zcl_event_receiver,
go_event_receiver_detail TYPE REF TO zcl_event_receiver.
DATA: gw_fieldcat_header TYPE lvc_t_fcat,
gw_fieldcat_detail TYPE lvc_t_fcat.
DATA: gv_row_no TYPE i.
DATA : gi_data TYPE ytta_header_101 WITH HEADER LINE.
10.Modifikasi MODULE CREATE CONTROL OUTPUT
Sebelum
MODULE CREATE_CONTROL OUTPUT.
if container_ref is initial.
create object container_ref
exporting container_name = 'CONTAINER_1'.
create object grid
exporting i_parent = container_ref.
call method grid->set_table_for_first_display
exporting i_structure_name = 'SPFLI'
changing it_outtab = itab.
else.
select * from spfli into table itab
where carrid = sbc400_carrier-carrid.
call method grid->refresh_table_display
exporting I_SOFT_REFRESH = 'X'.
endif.
ENDMODULE. " CREATE_CONTROL OUTPUT
Setelah
MODULE create_control OUTPUT.
IF container_ref IS INITIAL.
CREATE OBJECT container_ref
EXPORTING container_name = 'CONTAINER_1'.
CREATE OBJECT grid
EXPORTING i_parent = container_ref.
CALL METHOD grid->set_table_for_first_display
EXPORTING
i_structure_name = 'SPFLI'
CHANGING
it_outtab = itab.
ELSE.
CALL METHOD YCL_REPORT_MM=>get_data
EXPORTING
gv_matkl = mara-matkl
gv_matnr = '001-001'
gv_max_row = '100'
CHANGING
data = gi_data[].
CALL METHOD grid->refresh_table_display
EXPORTING
i_soft_refresh = 'X'.
ENDIF.
ENDMODULE. " CREATE_CONTROL OUTPUT
*) pada MODULE create_control OUTPUT, kita gunakan class YCL_REPORT_MM yang kita buat pada Report(701)
11.Kemudian kita buat in program include baru "zlc_event_receiver", kita hanya mengeklik ganda pada zlc_event_receiver
kemudian klik

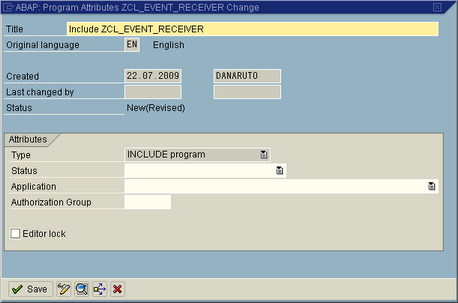

12.Akan ditampilkan
Klik
ke local object
13. Tambahkan Kode sintak berikut ke zlc_event_receiver
*&---------------------------------------------------------------------*
*& Include ZCL_EVENT_RECEIVER *
*&---------------------------------------------------------------------*
CLASS ZCL_EVENT_RECEIVER DEFINITION.
PUBLIC SECTION.
METHODS:
HANDLE_TOOLBAR FOR EVENT TOOLBAR OF CL_GUI_ALV_GRID
IMPORTING
E_OBJECT E_INTERACTIVE,
HANDLE_USER_COMMAND FOR EVENT USER_COMMAND OF CL_GUI_ALV_GRID
IMPORTING E_UCOMM,
HANDLE_HOTSPOT_CLICK FOR EVENT HOTSPOT_CLICK OF CL_GUI_ALV_GRID
IMPORTING E_ROW_ID E_COLUMN_ID ES_ROW_NO,
HANDLE_BUTTON_CLICK FOR EVENT BUTTON_CLICK OF CL_GUI_ALV_GRID
IMPORTING ES_COL_ID ES_ROW_NO,
HANDLE_DOUBLE_CLICK FOR EVENT DOUBLE_CLICK OF CL_GUI_ALV_GRID
IMPORTING E_ROW E_COLUMN ES_ROW_NO.
ENDCLASS. "lcl_event_receiver DEFINITION
CLASS ZCL_EVENT_RECEIVER IMPLEMENTATION.
METHOD HANDLE_TOOLBAR.
* Event handler method for event toolbar.
CONSTANTS:
* Constants for button type
C_BUTTON_NORMAL TYPE I VALUE 0,
C_MENU_AND_DEFAULT_BUTTON TYPE I VALUE 1,
C_MENU TYPE I VALUE 2,
C_SEPARATOR TYPE I VALUE 3,
C_RADIO_BUTTON TYPE I VALUE 4,
C_CHECKBOX TYPE I VALUE 5,
C_MENU_ENTRY TYPE I VALUE 6.
DATA:
LS_TOOLBAR TYPE STB_BUTTON.
* Append seperator to the normal toolbar
CLEAR LS_TOOLBAR.
MOVE C_SEPARATOR TO LS_TOOLBAR-BUTN_TYPE..
APPEND LS_TOOLBAR TO E_OBJECT->MT_TOOLBAR.
* Append a new button that to the toolbar. Use E_OBJECT of
* event toolbar. E_OBJECT is of type CL_ALV_EVENT_TOOLBAR_SET.
* This class has one attribute MT_TOOLBAR which is of table type
* TTB_BUTTON. The structure is STB_BUTTON
* CLEAR LS_TOOLBAR.
* MOVE 'BATALKAN_SKET' TO LS_TOOLBAR-FUNCTION.
* MOVE ICON_SYSTEM_MODUS_DELETE TO LS_TOOLBAR-ICON.
* MOVE 'BATALKAN SKET' TO LS_TOOLBAR-QUICKINFO.
* MOVE 'BATALKAN SKET' TO LS_TOOLBAR-TEXT.
* MOVE ' ' TO LS_TOOLBAR-DISABLED.
* APPEND LS_TOOLBAR TO E_OBJECT->MT_TOOLBAR.
*
ENDMETHOD. "handle_toolbar
METHOD HANDLE_USER_COMMAND.
* Handle own functions defined in the toolbar
* CASE E_UCOMM.
** WHEN 'BATALKAN_SKET'.
** PERFORM FM_BATALKAN_SKET.
* ENDCASE.
ENDMETHOD. "handle_user_command
METHOD HANDLE_HOTSPOT_CLICK.
PERFORM FM_ON_CLICK_HOTSPOT USING E_ROW_ID
E_COLUMN_ID
ES_ROW_NO.
ENDMETHOD. "handle_hotspot_click
METHOD HANDLE_BUTTON_CLICK.
PERFORM FM_ON_BUTTON_CLICK USING ES_COL_ID
ES_ROW_NO.
ENDMETHOD. "HANDLE_BUTTON_CLICK
METHOD HANDLE_DOUBLE_CLICK.
PERFORM FM_ON_DOUBLE_CLICK USING E_ROW
E_COLUMN
ES_ROW_NO.
ENDMETHOD.
ENDCLASS. "lcl_event_receiver IMPLEMENTATION
14.Edit Status 0100 dengan mengeklik
kemudian Klik ganda pada PBO Module -> STATUS_0100
15.Modifikasi Module status_0100 output
Sebelum
module status_0100 output.
SET PF-STATUS 'STATUS_100'.
* SET TITLEBAR 'xxx'.
endmodule. " STATUS_0100 OUTPUT
Setelah
MODULE status_0100 OUTPUT.
SET PF-STATUS 'STATUS_100'.
* SET TITLEBAR 'xxx'.
IF tc_header IS INITIAL.
PERFORM fm_build_alv_object_header.
ELSE.
CALL METHOD
tg_header->refresh_table_display
EXPORTING
i_soft_refresh = 'X'.
ENDIF.
ENDMODULE. " STATUS_0100 OUTPUT
16.Tambahkan pada akhir kode sintak
*&---------------------------------------------------------------------*
*& Form fm_on_BUTTON_CLICK
*&---------------------------------------------------------------------*
** text
**----------------------------------------------------------------------*
* -->P_ES_COL_ID text
* -->P_ES_ROW_NO text
*----------------------------------------------------------------------*
FORM fm_on_button_click USING p_es_col_id
p_es_row_no..
READ TABLE gi_data INDEX p_es_row_no.
IF sy-subrc IS INITIAL.
* GV_ROW_NO = P_ES_ROW_NO.
MESSAGE 'Test' TYPE 'E'.
ENDIF.
ENDFORM. " fm_on_BUTTON_CLICK
*&--------------------------------------------------------------------*
*& Form FM_BUILD_ALV_OBJECT_HEADER
*&--------------------------------------------------------------------*
* text
*---------------------------------------------------------------------*
FORM fm_build_alv_object_header.
CREATE OBJECT tc_header
EXPORTING container_name = 'FC_HEADER'.
CREATE OBJECT tg_header
EXPORTING i_parent = tc_header.
CREATE OBJECT go_event_receiver_header.
PERFORM fm_build_fieldcat_header TABLES gw_fieldcat_header.
CREATE OBJECT go_event_receiver_header.
* SET HANDLER GO_EVENT_RECEIVER_HEADER->HANDLE_TOOLBAR FOR TG_HEADER.
* SET HANDLER GO_EVENT_RECEIVER_HEADER->HANDLE_USER_COMMAND FOR TG_HEADER.
* SET HANDLER GO_EVENT_RECEIVER_HEADER->HANDLE_HOTSPOT_CLICK FOR TG_HEADER.
SET HANDLER go_event_receiver_header->handle_button_click FOR tg_header.
SET HANDLER go_event_receiver_header->handle_double_click FOR tg_header.
CALL METHOD
tg_header->set_table_for_first_display
EXPORTING
i_save = 'U'
i_structure_name = 'GI_DATA'
CHANGING
it_outtab = gi_data[]
it_fieldcatalog = gw_fieldcat_header[].
ENDFORM. "FM_BUILD_ALV_OBJECT_HEADER
*&--------------------------------------------------------------------*
*& Form FM_BUILD_FIELDCAT_HEADER
*&--------------------------------------------------------------------*
* text
*---------------------------------------------------------------------*
* -->FT_REPORT text
*---------------------------------------------------------------------*
FORM fm_build_fieldcat_header TABLES ft_report.
PERFORM f_fieldcatg USING gw_fieldcat_header 'GI_DATA' :
* 'CHK' '' 'CHK' '' '1' '' '' '' '' '' '' '' '' '' '' 'X' 'X' '' 'X' '',
'MATKL' 'GI_DATA' 'MATKL' '' '10' '' '' 'Material Number' '' '' '' '' '' '' '' '' '' '' '' '',
'MATNR' 'GI_DATA' 'MATNR' '' '13' '' '' 'Material' '' '' '' '' '' '' '' '' '' '' '' ''.
ENDFORM. "FM_BUILD_FIELDCAT_HEADER
*&--------------------------------------------------------------------*
*& Form F_FIELDCATG
*&--------------------------------------------------------------------*
* text
*---------------------------------------------------------------------*
* -->T_ALV_FIELDtext
* -->VALUE(FU_TYtext
* -->VALUE(FU_FNtext
* -->VALUE(FU_REtext
* -->VALUE(FU_REtext
* -->VALUE(FU_NOtext
* -->VALUE(FU_OUtext
* -->VALUE(FU_FLtext
* -->VALUE(FU_REtext)
* -->VALUE(FU_COtext)
* -->VALUE(FU_DOtext
* -->VALUE(FU_HOtext
* -->VALUE(FU_DEtext
* -->VALUE(FU_WAtext
* -->VALUE(FU_MEtext
* -->VALUE(FU_MEtextF)
* -->VALUE(FU_WAtextF)
* -->VALUE(FU_CHtextOX)
* -->VALUE(FU_FItextUMN)
* -->VALUE(FU_ICtext
* -->VALUE(FU_EDtext
* -->VALUE(FU_KEtext
*---------------------------------------------------------------------*
FORM f_fieldcatg USING
t_alv_fieldcat TYPE lvc_t_fcat
value(fu_types) "0
value(fu_fname) "1
value(fu_reftb) "2
value(fu_refld) "3
value(fu_noout) "4
value(fu_outln) "5
value(fu_fltxt) "6
value(fu_reptxt) "7
value(fu_coltxt) "8
value(fu_dosum) "9
value(fu_hotsp) "10
value(fu_dec) "11
value(fu_waers)
value(fu_meins)
value(fu_meins_f)
value(fu_waers_f)
value(fu_checkbox)
value(fu_fixcolumn)
value(fu_icon)
value(fu_edit)
value(fu_key)
.
DATA: ld_fieldcat TYPE lvc_t_fcat WITH HEADER LINE.
CLEAR: ld_fieldcat.
ld_fieldcat-tabname = fu_types.
ld_fieldcat-fieldname = fu_fname.
ld_fieldcat-ref_table = fu_reftb.
ld_fieldcat-ref_field = fu_refld.
ld_fieldcat-no_out = fu_noout.
ld_fieldcat-outputlen = fu_outln.
ld_fieldcat-seltext = fu_fltxt.
ld_fieldcat-reptext = fu_reptxt.
ld_fieldcat-coltext = fu_coltxt.
ld_fieldcat-do_sum = fu_dosum.
ld_fieldcat-hotspot = fu_hotsp.
ld_fieldcat-decimals_o = fu_dec.
ld_fieldcat-currency = fu_waers.
ld_fieldcat-quantity = fu_meins.
ld_fieldcat-qfieldname = fu_meins_f.
ld_fieldcat-cfieldname = fu_waers_f.
ld_fieldcat-checkbox = fu_checkbox.
ld_fieldcat-fix_column = fu_fixcolumn.
ld_fieldcat-icon = fu_icon.
ld_fieldcat-edit = fu_edit.
ld_fieldcat-key = fu_key.
APPEND ld_fieldcat TO t_alv_fieldcat.
ENDFORM. "F_FIELDCATG
*&---------------------------------------------------------------------*
*& Form FM_ON_CLICK_HOTSPOT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* -->I_ROW_ID text
* --> text
* -->I_COLUMN_ID text
* --> text
* -->IS_ROW_NO text
*----------------------------------------------------------------------*
FORM FM_ON_CLICK_HOTSPOT USING I_ROW_ID TYPE LVC_S_ROW
I_COLUMN_ID TYPE LVC_S_COL
IS_ROW_NO TYPE LVC_S_ROID.
* READ TABLE GI_HEADER INDEX I_ROW_ID.
* IF SY-SUBRC IS INITIAL.
* GV_ROW_NO = I_ROW_ID.
* ENDIF.
READ TABLE GI_DATA INDEX I_ROW_ID.
* IF GI_DATA-ICON IS INITIAL.
*
* ELSEIF GI_DATA-ICON = ICON_EXPAND.
* PERFORM FM_LOAD_CHILD_HEADER USING GI_HEADER-PRUEFLOS GI_HEADER-WERK I_ROW_ID.
* ELSEIF GI_HEADER-ICON = ICON_COLLAPSE.
* PERFORM FM_UNLOAD_CHILD_HEADER USING GI_HEADER-PRUEFLOS I_ROW_ID.
* ENDIF.
ENDFORM. "FM_ON_CLICK_HOTSPOT
*&---------------------------------------------------------------------*
*& Form FM_ON_DOUBLE_CLICK
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* -->P_E_ROW text
* -->P_E_COLUMN text
* -->P_ES_ROW_NO text
*----------------------------------------------------------------------*
FORM fm_on_double_click USING p_e_row
p_e_column
p_es_row_no TYPE lvc_s_roid.
* BREAK ABAP08.
DATA: lv_row_id TYPE i.
lv_row_id = p_es_row_no-row_id.
READ TABLE gi_data INDEX lv_row_id.
MESSAGE gi_data-matkl TYPE 'I'.
ENDFORM. " FM_ON_DOUBLE_CLICK
17.Modifikasi screen 0100 dengan mengeklik kemudian klik ganda pada Screens -> 0100

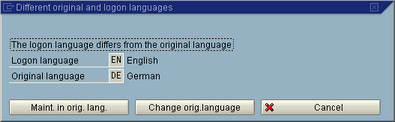

akan ditampilkan
kemudian klik
Kemudian ditampilkan
kemudian klik
18.Kemudian Klik tombol Layout
19.Klik pada
ubah properti
20.Klik pada
ubah properti
21.Simpan, Aktifkan screen dan tutup screen

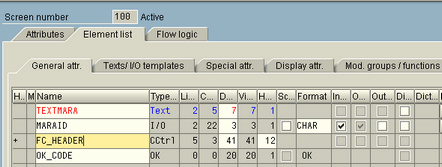

22.Klik Tab 'Element List', ubah 'CONTAINER1' menjadi 'FC_HEADER'
23.Aktifkan Screen Painter
24.kembali ke program utama dengan mengelik ganda pada
25.Simpan dan Aktifkan semua.
26.Program siap dijalankan.
27.Tampilanya akan seperti berikut
