▪Klik "" untuk melihat semua objek

▪Klik kanan pada Object Tree, dan pilih "Screen"

▪Buat Screen 2000

then click

▪Isikan Short description dengan "Main Screen"

Simpan screen 2000

•Klik LayOut dari screen 2000

•Klik 'subscreen area' dan tempatkan pada screen painter, lakukan sebanyak 3 kali.

•Klik salah satu dan ubah propertinya seperti gambar dibawah dengan mengeklik

•Klik lainnya dan ubah propertinya seperti gambar dibawah

•Klik lainnya lagi dan ubah propertinya seperti gambar dibawah

•Simpan dan tutup screen painter

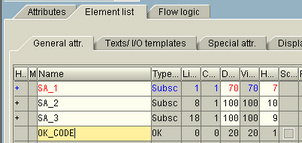

•Ketikkan 'OK_CODE' pada field setelah 'SA_3'

•Simpan dan klik tab 'Flow logic'

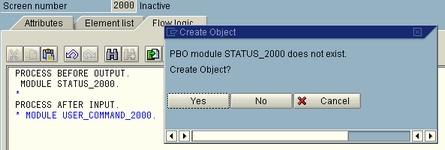

•Aktifkan 'MODULE STATUS_2000' kemudian klik ganda

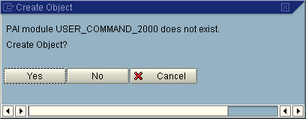

•Akan muncul menu pop up, kemudian klik tombol Yes

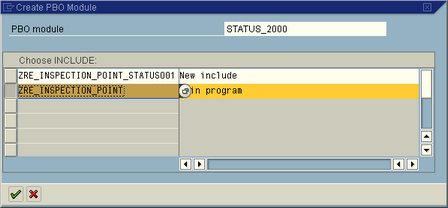

•Klik main program

then click

•Akan muncul menu pop up, kemudian klik tombol Yes

•Ubah Program utama

Sebelum

REPORT  ZRE_INSPECTION_POINT                    .

*&---------------------------------------------------------------------*

*&      Module  STATUS_2000  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

module STATUS_2000 output.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.

endmodule.                 " STATUS_2000  OUTPUT

Setelah

REPORT  ZRE_INSPECTION_POINT                    .

*&---------------------------------------------------------------------*

*&      Module  STATUS_2000  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

module STATUS_2000 output.

  SET PF-STATUS 'ST_2000'.

  SET TITLEBAR 'TITTLE_2000'.

endmodule.                 " STATUS_2000  OUTPUT

•Klik ganda pada 'TITTLE_2000'

•Akan muncul menu pop up, kemudian klik tombol Yes

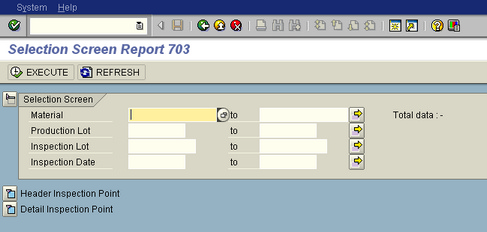

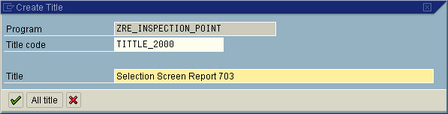

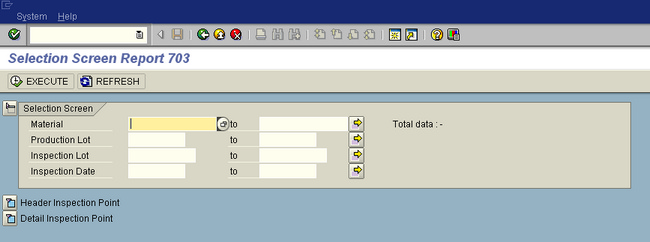

•Isikan title dengan "Selection Screen Report 703"

then click

•Klik ganda pada 'ST_2000'

•Akan muncul menu pop up, kemudian klik tombol Yes

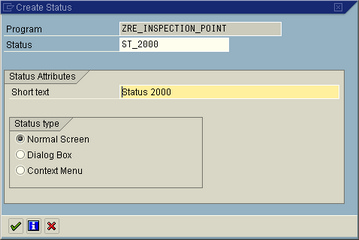

•Isikan Short text dengan Status 2000

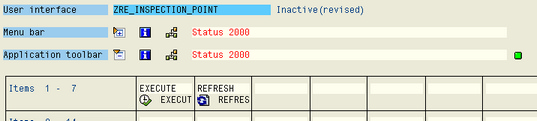

•Buka Application toolbar, buat tombol "EXECUTE" dan "REFRESH" lihat gambar dibawah

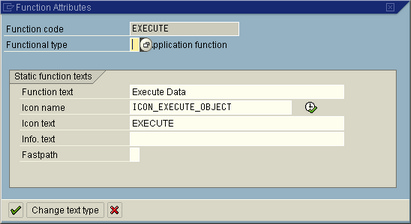

**) properties dari EXECUTE

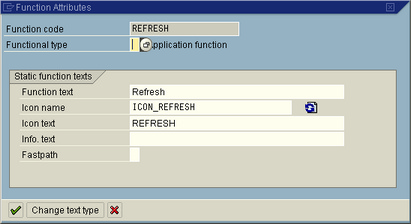

**) properties dari REFRESH

•Buka Function Keys, buat BACK,EXIT, and CANCEL

•Simpan dan Aktifkan ST_2000

Kembali ke program utama

•Klik kanan pada Screen-> create

•Isikan Screen Number dengan 0100

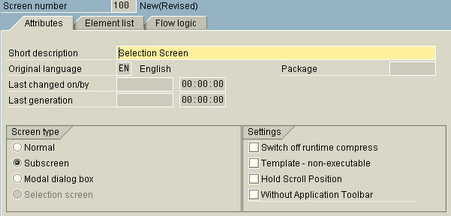

•Isikan Short description dengan "Selection Screen" dan Screen Type with "Subscreen"

•Klik LayOut from screen 100

•Klik dan tempatkan 'Push Button' pada screen painter twice

•Klik dan tempatkan 'Text Field' pada screen painter

•Klik dan tempatkan 'Subscreen Area' pada screen painter

•Klik salah satu dari  'Push Button' dan ubah properties seperti gambar dibawah dengan mengeklik

•Klik 'Text Field' dan ubah properties seperti gambar dibawah dengan mengeklik

•Klik 'Push Button' lainnya dan ubah properties seperti gambar dibawah dengan mengeklik

•Klik 'Subscreen Area' dan ubah properties seperti gambar dibawah dengan mengeklik

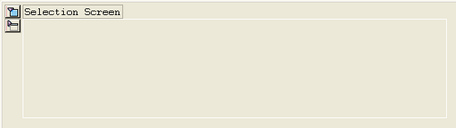

•Hasilnya seperti dini

•Simpan dan tutup screen painter

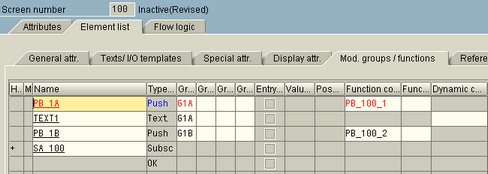

•Klik tab 'Element List' kemudian klik tab 'Mod. Group / functions'

•Isikan Group1 dan function code sgambar berikut

•Simpan dan aktifkan

•Klik kanan pada Screen-> create

•Isikan Screen Number dengan 0200

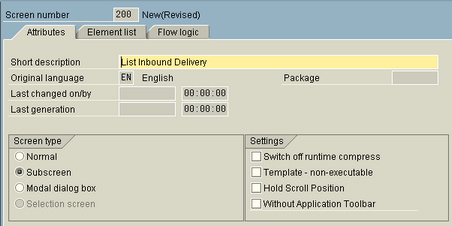

•Isikan Short description dengan "List Inbound Delivery" dan Screen Type dengan "Subscreen"

•Klik LayOut dari screen 200

•Klik dan tempatkan 'Push Button' pada screen painter dua kali

•Klik dan tempatkan 'Text Field' pada screen painter

•Klik dan tempatkan 'Subscreen Area' pada screen painter

•Klik salah satu dari 'Push Button' dan ubah properti seperti gambar dibawah dengan mengeklik

•Klik 'Text Field' dan ubah properti seperti gambar dibawah dengan mengeklik

•Klik 'Push Button' lainnya dan ubah properti seperti gambar dibawah dengan mengeklik

•Klik 'Subscreen Area' dan ubah properti seperti gambar dibawah dengan mengeklik

•Hasilnya seperti gambar dibawah

•Simpan dan tutup screen painter

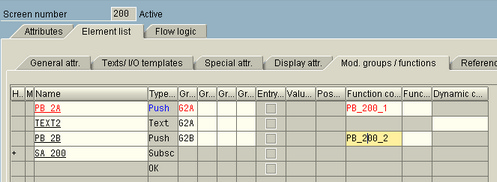

•Klik tab 'Element List' kemudian klik tab 'Mod. Group / functions'

•Isikan Group1 dan function code gambar berikut

•Simpan dan aktifkan

•Kembali keprogram utama

•Klik kanan pada Screen-> create

•Isikan Screen Number dengan 0300

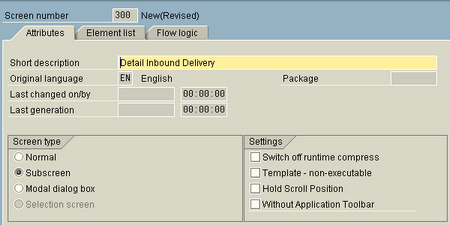

•Isikan Short description dengan "Detail Inbound Delivery" dan Screen Type dengan "Subscreen"

•Klik LayOut from screen 300

•Klik dan tempatkan 'Push Button' pada screen painter twice

•Klik dan tempatkan 'Text Field' pada screen painter

•Klik dan tempatkan 'Subscreen Area' pada screen painter

•Klik salah satu dari  'Push Button' dan ubah properties seperti gambar dibawah dengan mengeklik

•Klik 'Text Field' dan ubah properties seperti gambar dibawah dengan mengeklik

•Klik 'Push Button' lainnya dan ubah properties seperti gambar dibawah dengan mengeklik

•Klik 'Subscreen Area' dan ubah properties seperti gambar dibawah dengan mengeklik

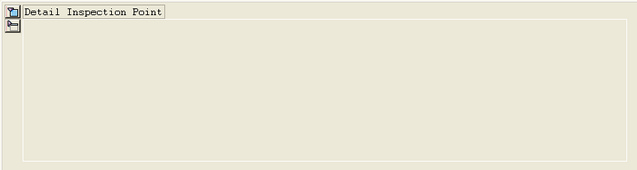

•Hasilnya seperti berikut

•Simpan dan tutup screen painter

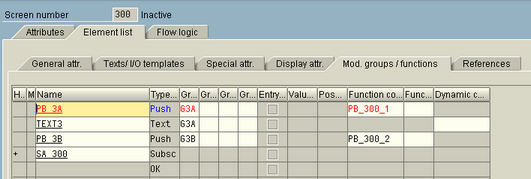

•Klik tab 'Element List' kemudian klik tab 'Mod. Group / functions'

•Isikan Group1 dan function code sgambar berikut

•Simpan dan aktifkan

•Kembali ke program utama

•Klik kanan pada Screen-> create

•Isikan Screen Number dengan 3000

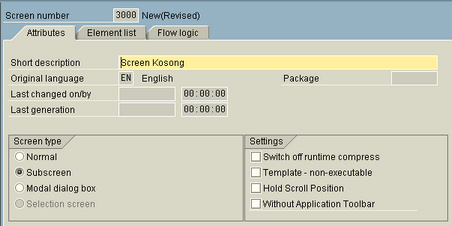

•Isikan Short description dengan "Screen Kosong" dan Screen Type dengan "Subscreen"

•Simpan Screen 3000 dan aktifkan

•Kembali ke screen utama (Source Code screen)

•Klik kanan pada Screen-> create

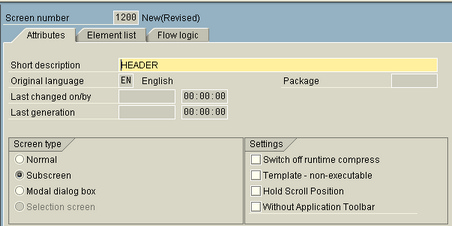

•Isikan Screen Number dengan 1200

•Isikan Short description dengan  "HEADER" dan Screen Type dengan "Subscreen"

•Klik LayOut dari screen 1200

•Klik dan tempatkan 'Custom Control' pada screen painter

•Klik pada 'Custom Control' dan ubah properti seperti gambar dibawah dengan mengeklik

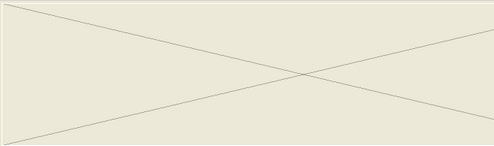

•Hasilnya seperti berikut

•Simpan dan tutup screen painter

•Klik tab 'Flow Logic' dan edit code

Sebelum

PROCESS BEFORE OUTPUT.

* MODULE STATUS_1200.

*

PROCESS AFTER INPUT.

* MODULE USER_COMMAND_1200.

Setelah

PROCESS BEFORE OUTPUT.

 MODULE STATUS_1200.

PROCESS AFTER INPUT.

* MODULE USER_COMMAND_1200.

•Klik ganda pada STATUS_1200

•Akan muncul menu pop up

kemudian klik tombol Yes

•Pilih Main program

•Klik Tombol Yes

•Kita akan mengkoding nanti. Sekarang simpan program saja dulu.

•Klik kanan pada Screen-> create

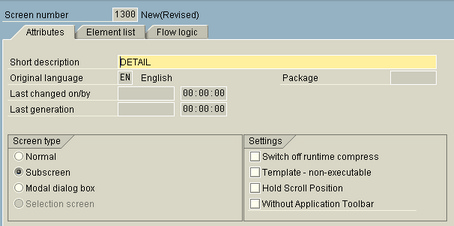

•Isikan Screen Number dengan 1300

•Isikan Short description dengan "DETAIL" dan Screen Type dengan "Subscreen"

•Klik LayOut dari screen 1300

•Klik dan tempatkan 'Custom Control' pada screen painter

•Klik on 'Custom Control' dan ubah properties seperti dibawah dengan mengeklik

•Hasilnya seperti berikut

•Simpan dan tutup screen painter

•Klik tab 'Flow Logic' Edit Kodingnya

Sebelum

PROCESS BEFORE OUTPUT.

* MODULE STATUS_1300.

*

PROCESS AFTER INPUT.

* MODULE USER_COMMAND_1300.

Setelah

PROCESS BEFORE OUTPUT.

 MODULE STATUS_1300.

PROCESS AFTER INPUT.

* MODULE USER_COMMAND_1300.

•Klik ganda STATUS_1300

•Akan muncul menu pop up

kemudian klik tombol Yes

•Pilih Main program

•Klik Tombol Yes

•Kita akan mengkoding nanti. Cukup simpan program saja dulu

TYPE-POOLS: ICON.

*&---------------------------------------------------------------------*

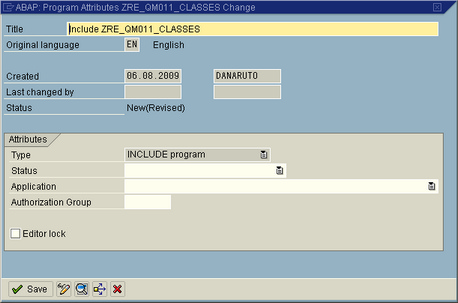

*&  Include           ZRE_QM011_CLASSES                                *

*&---------------------------------------------------------------------*

*&---------------------------------------------------------------------

*&- C L A S S E S

*&---------------------------------------------------------------------

CLASS lcl_event_receiver DEFINITION.

  PUBLIC SECTION.

    METHODS:

     handle_toolbar FOR EVENT toolbar OF cl_gui_alv_grid

       IMPORTING

         e_object e_interactive,

     handle_user_command FOR EVENT user_command OF cl_gui_alv_grid

       IMPORTING e_ucomm,

     handle_hotspot_click FOR EVENT hotspot_click OF cl_gui_alv_grid

        IMPORTING e_row_id e_column_id es_row_no,

     handle_button_click FOR EVENT button_click OF cl_gui_alv_grid

        IMPORTING es_col_id es_row_no,

     handle_double_click FOR EVENT double_click OF cl_gui_alv_grid

        IMPORTING e_row e_column es_row_no.

ENDCLASS.                    "lcl_event_receiver DEFINITION

*---------------------------------------------------------------------*

*       CLASS lcl_event_receiver IMPLEMENTATION

*---------------------------------------------------------------------*

CLASS lcl_event_receiver IMPLEMENTATION.

  METHOD handle_toolbar.

*  Event handler method for event toolbar.

    CONSTANTS:

*  Constants for button type

      c_button_normal           TYPE i VALUE 0,

      c_menu_and_default_button TYPE i VALUE 1,

      c_menu                    TYPE i VALUE 2,

      c_separator               TYPE i VALUE 3,

      c_radio_button            TYPE i VALUE 4,

      c_checkbox                TYPE i VALUE 5,

      c_menu_entry              TYPE i VALUE 6.

    DATA:

        ls_toolbar  TYPE stb_button.

*   Append seperator to the normal toolbar

    CLEAR ls_toolbar.

    MOVE c_separator TO ls_toolbar-butn_type..

    APPEND ls_toolbar TO e_object->mt_toolbar.

*   Append a new button that to the toolbar. Use E_OBJECT of

*   event toolbar. E_OBJECT is of type CL_ALV_EVENT_TOOLBAR_SET.

*   This class has one attribute MT_TOOLBAR which is of table type

*   TTB_BUTTON. The structure is STB_BUTTON

*    CLEAR LS_TOOLBAR.

*    MOVE 'BATALKAN_SKET'        TO LS_TOOLBAR-FUNCTION.

*    MOVE ICON_SYSTEM_MODUS_DELETE  TO LS_TOOLBAR-ICON.

*    MOVE 'BATALKAN SKET'     TO LS_TOOLBAR-QUICKINFO.

*    MOVE 'BATALKAN SKET'     TO LS_TOOLBAR-TEXT.

*    MOVE ' '              TO LS_TOOLBAR-DISABLED.

*    APPEND LS_TOOLBAR     TO E_OBJECT->MT_TOOLBAR.

*

  ENDMETHOD.                    "handle_toolbar

  METHOD handle_user_command.

*   Handle own functions defined in the toolbar

*    CASE E_UCOMM.

**      WHEN 'BATALKAN_SKET'.

**        PERFORM FM_BATALKAN_SKET.

*    ENDCASE.

  ENDMETHOD.                    "handle_user_command

  METHOD handle_hotspot_click.

    PERFORM fm_on_click_hotspot USING e_row_id

                                      e_column_id

                                      es_row_no.

  ENDMETHOD.                    "handle_hotspot_click

  METHOD handle_button_click.

    PERFORM fm_on_button_click USING es_col_id

                                      es_row_no.

  ENDMETHOD.                    "HANDLE_BUTTON_CLICK

  METHOD handle_double_click.

    PERFORM fm_on_double_click USING e_row

                                     e_column

                                     es_row_no.

  ENDMETHOD.

ENDCLASS.                    "lcl_event_receiver IMPLEMENTATION

*&---------------------------------------------------------------------

*&---------------------------------------------------------------------*

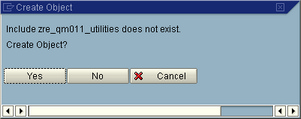

*&  Include           ZRE_FI010_UTILITIES                              *

*&---------------------------------------------------------------------*

*&---------------------------------------------------------------------*

*&      Form  Fm_POPUP_TO_CONFIRM

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->FU_TITLE   text

*      -->FU_TEXT1   text

*      -->FC_ANS     text

*----------------------------------------------------------------------*

FORM FM_POPUP_TO_CONFIRM  USING    FU_TITLE

                                  FU_TEXT1

                         CHANGING FC_ANS.

  CALL FUNCTION 'POPUP_TO_CONFIRM'

    EXPORTING

      TITLEBAR                    = FU_TITLE

*     DIAGNOSE_OBJECT             = ' '

      TEXT_QUESTION               = FU_TEXT1

      TEXT_BUTTON_1               = 'Yes'(001)

      ICON_BUTTON_1               = 'ICON_OKAY'

      TEXT_BUTTON_2               = 'No'(002)

      ICON_BUTTON_2               = 'ICON_CANCEL'

      DEFAULT_BUTTON              = '1'

      DISPLAY_CANCEL_BUTTON       = ' '

*     USERDEFINED_F1_HELP         = ' '

      START_COLUMN                = 25

      START_ROW                   = 6

      POPUP_TYPE                  = 'ICON_MESSAGE_WARNING'

*     IV_QUICKINFO_BUTTON_1       = ' '

*     IV_QUICKINFO_BUTTON_2       = ' '

    IMPORTING

      ANSWER                      = FC_ANS

*   TABLES

*     PARAMETER                   =

    EXCEPTIONS

      TEXT_NOT_FOUND              = 1

      OTHERS                      = 2.

  IF SY-SUBRC <> 0.

*         MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO

*           WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.

  ENDIF.

ENDFORM.                    "Fm_POPUP_TO_CONFIRM

*&---------------------------------------------------------------------*

*&      Form  FSTRING_AUSGEBEN

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->VALUE(NOTINI)   text

*      -->VALUE(F)        text

*      -->VALUE(STELLEN)  text

*      -->VALUE(STRING)   text

*----------------------------------------------------------------------*

FORM FSTRING_AUSGEBEN USING    VALUE(NOTINI)

                               VALUE(F)

                               VALUE(STELLEN)

                      CHANGING VALUE(STRING).

  CALL FUNCTION 'QSS4_FSTRING_AUSGEBEN'

    EXPORTING

      I_NOTINI   = NOTINI

      I_FLOAT    = F

      I_DECIMALS = STELLEN

    IMPORTING

      E_STRING   = STRING.

ENDFORM.                    "FSTRING_AUSGEBEN

*&---------------------------------------------------------------------*

*& Report  ZRE_INSPECTION_POINT                                        *

*&                                                                     *

*&---------------------------------------------------------------------*

*&                                                                     *

*&                                                                     *

*&---------------------------------------------------------------------*

REPORT  zre_inspection_point.

INCLUDE zre_qm011_classes.

TYPE-POOLS : icon, ole2.

TYPES : BEGIN OF gt_header,

        matnr LIKE qals-matnr,    "material

        ktextmat LIKE qals-ktextmat, "description

        werk LIKE qals-werk,      "plant

        aufnr LIKE qals-aufnr,    "production order

        prueflos LIKE qals-prueflos,  "Inspection Lot

        userc2 LIKE qapp-userc2,      "Production Lot

        userd1 LIKE qapp-userd1,      "Inspection Date

        art LIKE qals-art,            "inspection type yang ditampilkan

        slwbez LIKE qals-slwbez,      "untuk generate Inspection Point

        pruefpkt LIKE qappw-pruefpkt,  "inspection point

        ppsortkey LIKE qapp-ppsortkey,

        time(8),

        date(10),

        prolot(10),

        probenr LIKE qapp-probenr,

        werks LIKE qals-werk,

        chk,

        num TYPE i,

        icon(4),

        child_num TYPE i,

        child TYPE i,

       END OF gt_header.

DATA : gi_header TYPE TABLE OF gt_header WITH HEADER LINE.

TYPES : BEGIN OF gt_detail.

        INCLUDE STRUCTURE gi_header.

TYPES : merknr LIKE qamv-merknr,     "No posisi document

        verwmerkm LIKE qamv-verwmerkm, "characteristic

        kurztext LIKE qpmt-kurztext,    "short text utk characteristic

        toleranzob LIKE qamv-toleranzob, " Batas bawah utk spesification

        toleranzob_char LIKE qaqee-toleranzob,

        toleranzun LIKE qamv-toleranzun,  "batas atas spesifications

        toleranzun_char LIKE qaqee-toleranzun,

        sollwert LIKE qamv-sollwert,

        sollwert_char LIKE qaqee-sollwert,

        stellen LIKE qamv-stellen,

        sollwni LIKE qamv-sollwni,

        tolunni LIKE qamv-tolunni,

        tolobni LIKE qamv-tolobni,

        pruefkat LIKE qmkst-pruefkat,

        masseinhsw LIKE qamv-masseinhsw,

        steuerkz LIKE qamv-steuerkz,

        tolgrenze LIKE qamkr-tolgrenze, " spesification

        messwert LIKE qase-messwert,      "result 1

        messwert_c LIKE qaqee-messwert,   "result 1

        messwert_char(40),

        original_input LIKE qase-original_input,    "result 2

        mbewertg LIKE qase-mbewertg,      " valuation

        END OF gt_detail.

TABLES : qals, qapp, qamv, qpmt, qase, qappw, qasr, qpam, qpct.

DATA:

      gi_detail TYPE TABLE OF gt_detail WITH HEADER LINE,

      gi_qals TYPE TABLE OF qals WITH HEADER LINE,

      gi_qapp TYPE TABLE OF qapp WITH HEADER LINE,

      gi_qamv TYPE TABLE OF qamv WITH HEADER LINE,

      gi_qpmt TYPE TABLE OF qpmt WITH HEADER LINE,

      gi_qase TYPE TABLE OF qase WITH HEADER LINE,

      gi_qasr TYPE TABLE OF qasr WITH HEADER LINE,

      gi_qpam TYPE TABLE OF qpam WITH HEADER LINE,

      gi_qpct TYPE TABLE OF qpct WITH HEADER LINE.

DATA: gi_receiver LIKE STANDARD TABLE OF somlreci1 WITH HEADER LINE,

      gi_message LIKE STANDARD TABLE OF solisti1 WITH HEADER LINE.

DATA: gv_screen1(4) TYPE n VALUE '1100',

      gv_screen2(4) TYPE n VALUE '3000',

      gv_screen3(4) TYPE n VALUE '3000'.

DATA: gv_pb1(1) VALUE 'X',

      gv_pb2(1) VALUE ' ',

      gv_pb3(1) VALUE ' '.

DATA: ok_code TYPE sy-ucomm,

      save_ok TYPE sy-ucomm.

DATA: tc_header TYPE REF TO cl_gui_custom_container,

      tg_header TYPE REF TO cl_gui_alv_grid,

      tc_detail TYPE REF TO cl_gui_custom_container,

      tg_detail TYPE REF TO cl_gui_alv_grid,

      go_event_receiver_header TYPE REF TO lcl_event_receiver,

      go_event_receiver_detail TYPE REF TO lcl_event_receiver.

DATA: gw_fieldcat_header TYPE lvc_t_fcat,

      gw_fieldcat_detail TYPE lvc_t_fcat.

DATA: gv_row_no TYPE i.

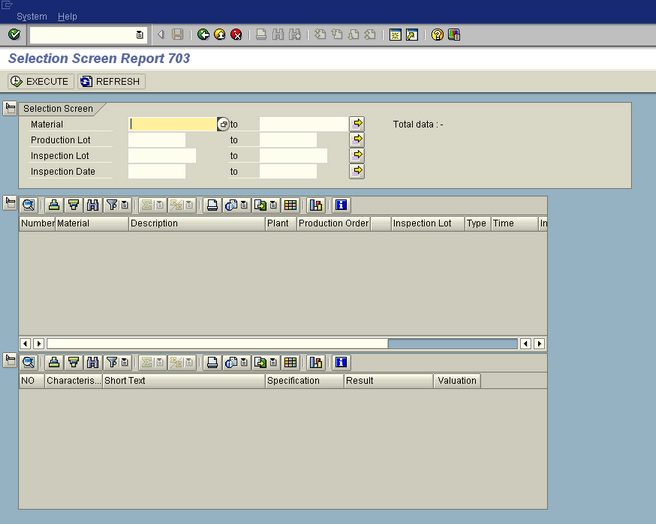

SELECTION-SCREEN BEGIN OF SCREEN 1100 AS SUBSCREEN.

SELECTION-SCREEN BEGIN OF BLOCK a WITH FRAME TITLE text_001.

SELECTION-SCREEN BEGIN OF LINE.

SELECTION-SCREEN COMMENT 1(15) text_002 FOR FIELD so_matnr.

SELECT-OPTIONS so_matnr FOR qals-matnr.

SELECTION-SCREEN COMMENT 70(21) gv_info.

SELECTION-SCREEN END OF LINE.

SELECTION-SCREEN BEGIN OF LINE.

SELECTION-SCREEN COMMENT 1(15) text_003 FOR FIELD so_c2.

SELECT-OPTIONS so_c2 FOR qapp-userc2.

SELECTION-SCREEN END OF LINE.

SELECTION-SCREEN BEGIN OF LINE.

SELECTION-SCREEN COMMENT 1(15) text_004 FOR FIELD so_pru.

SELECT-OPTIONS so_pru FOR qals-prueflos.

SELECTION-SCREEN END OF LINE.

SELECTION-SCREEN BEGIN OF LINE.

SELECTION-SCREEN COMMENT 1(15) text_005 FOR FIELD so_d1.

SELECT-OPTIONS so_d1 FOR qapp-userd1.

SELECTION-SCREEN END OF LINE.

SELECTION-SCREEN END OF BLOCK a.

SELECTION-SCREEN END OF SCREEN 1100.

INITIALIZATION.

  text_001 = 'Selection Screen'.

  text_002 = 'Material'.

  text_003 = 'Production Lot'.

  text_004 = 'Inspection Lot'.

  text_005 = 'Inspection Date'.

  gv_info = 'Total data : - '.

START-OF-SELECTION.

  CALL SCREEN 2000.

END-OF-SELECTION.

*&---------------------------------------------------------------------*

*&      Module  STATUS_2000  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE status_2000 OUTPUT.

  SET PF-STATUS 'ST_2000'.

  SET TITLEBAR 'TITTLE_2000'.

ENDMODULE.                 " STATUS_2000  OUTPUT

*&---------------------------------------------------------------------*

*&      Module  USER_COMMAND_2000  INPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE user_command_2000 INPUT.

  save_ok = ok_code.

  CLEAR ok_code.

  CASE save_ok.

    WHEN 'BACK' OR 'EXIT' OR 'CANCEL'.

      LEAVE PROGRAM.

    WHEN 'EXECUTE'.

      PERFORM fm_proses.

      gv_screen1 = '3000'.

      gv_screen2 = '1200'.

      gv_screen3 = '1300'.

      gv_pb1 = ' '.

      gv_pb2 = 'X'.

      gv_pb3 = 'X'.

    WHEN 'REFRESH'.

      PERFORM fm_refresh.

      PERFORM fm_proses.

  ENDCASE.

ENDMODULE.                 " USER_COMMAND_2000  INPUT

*&---------------------------------------------------------------------*

*&      Form FM_REFRESH

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

FORM fm_refresh.

  gv_screen1 = '1100'.

  gv_screen1 = '3000'.

  gv_screen1 = '3000'.

  gv_pb1 = 'X'.

  gv_pb2 = ' '.

  gv_pb3 = ' '.

  LOOP AT gi_header.

    DELETE gi_header.

  ENDLOOP.

ENDFORM.                "FM_REFRESH

*&---------------------------------------------------------------------*

*&      Module  status_0100  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE status_0100 OUTPUT.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.

* for de-active all control

  CASE screen-group1.

   WHEN 'G1A'.

     screen-active = 0.

   WHEN 'G1B'.

     screen-active = 0.

  ENDCASE.

* for active control which needed

  LOOP AT SCREEN.

    IF gv_pb1 = 'X'.

      CASE screen-group1.

         WHEN 'G1A'.

           screen-active = 0.

         WHEN 'G1B'.

           screen-active = 1.

      ENDCASE.

    ELSEIF gv_pb1 = ' '.

      CASE screen-group1.

         WHEN 'G1A'.

           screen-active = 1.

         WHEN 'G1B'.

           screen-active = 0.

      ENDCASE.

    ENDIF.

    MODIFY SCREEN.

  ENDLOOP.

ENDMODULE.                 " status_0100  OUTPUT

*&---------------------------------------------------------------------*

*&      Module  user_command_0100  INPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE user_command_0100 INPUT.

* for assign variable

  save_ok = ok_code.

  CASE save_ok.

    WHEN 'PB_100_1'.

      gv_pb1 = 'X'.

      gv_screen1 = 1100.

    WHEN 'PB_100_2'.

      gv_pb1 = ' '.

      gv_screen1 = 3000.

  ENDCASE.

ENDMODULE.                 " user_command_0100  INPUT

*&---------------------------------------------------------------------*

*&      Module  status_0200  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE status_0200 OUTPUT.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.

* for de-active all control

  CASE screen-group1.

   WHEN 'G2A'.

     screen-active = 0.

   WHEN 'G2B'.

     screen-active = 0.

  ENDCASE.

* for active control which needed

  LOOP AT SCREEN.

    IF gv_pb2 = 'X'.

      CASE screen-group1.

         WHEN 'G2A'.

           screen-active = 0.

         WHEN 'G2B'.

           screen-active = 1.

      ENDCASE.

    ELSEIF gv_pb2 = ' '.

      CASE screen-group1.

         WHEN 'G2A'.

           screen-active = 1.

         WHEN 'G2B'.

           screen-active = 0.

      ENDCASE.

    ENDIF.

    MODIFY SCREEN.

  ENDLOOP.

ENDMODULE.                 " status_0200  OUTPUT

*&---------------------------------------------------------------------*

*&      Module  user_command_0200  INPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE user_command_0200 INPUT.

* for assign variable

  save_ok = ok_code.

  CASE save_ok.

    WHEN 'PB_200_1'.

      gv_pb2 = 'X'.

      gv_screen2 = 1200.

    WHEN 'PB_200_2'.

      gv_pb2 = ' '.

      gv_screen2 = 3000.

  ENDCASE.

ENDMODULE.                 " user_command_0200  INPUT

*&---------------------------------------------------------------------*

*&      Module  status_0300  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE status_0300 OUTPUT.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.

* for de-active all control

  CASE screen-group1.

   WHEN 'G3A'.

     screen-active = 0.

   WHEN 'G3B'.

     screen-active = 0.

  ENDCASE.

* for active control which needed

  LOOP AT SCREEN.

    IF gv_pb3 = 'X'.

      CASE screen-group1.

         WHEN 'G3A'.

           screen-active = 0.

         WHEN 'G3B'.

           screen-active = 1.

      ENDCASE.

    ELSEIF gv_pb3 = ' '.

      CASE screen-group1.

         WHEN 'G3A'.

           screen-active = 1.

         WHEN 'G3B'.

           screen-active = 0.

      ENDCASE.

    ENDIF.

    MODIFY SCREEN.

  ENDLOOP.

ENDMODULE.                 " status_0300  OUTPUT

*&---------------------------------------------------------------------*

*&      Module  user_command_0300  INPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE user_command_0300 INPUT.

* for assign variable

  save_ok = ok_code.

  CASE save_ok.

    WHEN 'PB_300_1'.

      gv_pb3 = 'X'.

      gv_screen3 = 1300.

    WHEN 'PB_200_2'.

      gv_pb3 = ' '.

      gv_screen3 = 3000.

  ENDCASE.

ENDMODULE.                 " user_command_0300  INPUT

*&---------------------------------------------------------------------*

*&      Form FM_PROSES

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

FORM fm_proses.

  DATA : lv_rowcount(6),

         lv_counter TYPE i,

         lv_text1 TYPE string,

         lv_text2 TYPE string,

         lv_text3 TYPE string.

*delete data at grid first

  LOOP AT gi_header.

    DELETE gi_header.

  ENDLOOP.

  LOOP AT gi_detail.

    DELETE gi_detail.

  ENDLOOP.

  SELECT *

  FROM qals

    INTO CORRESPONDING FIELDS OF TABLE gi_qals

  WHERE

    matnr IN so_matnr AND

    prueflos IN so_pru AND

    art IN ('03','04').

  SELECT *

    INTO CORRESPONDING FIELDS OF TABLE gi_qapp

  FROM qapp

    FOR ALL ENTRIES IN gi_qals

  WHERE

    prueflos EQ gi_qals-prueflos AND

    userc2 IN so_c2 AND

    userd1 IN so_d1.

  SELECT *

    INTO CORRESPONDING FIELDS OF TABLE gi_qamv

  FROM qamv

    FOR ALL ENTRIES IN gi_qals

  WHERE

    prueflos EQ gi_qals-prueflos.

* collect quantities data

  SELECT *

    INTO CORRESPONDING FIELDS OF TABLE gi_qase

  FROM qase

    FOR ALL ENTRIES IN gi_qals

  WHERE

    prueflos EQ gi_qals-prueflos.

* collect qualities data

  SELECT *

    INTO CORRESPONDING FIELDS OF TABLE gi_qasr

  FROM qasr

    FOR ALL ENTRIES IN gi_qals

  WHERE

    prueflos EQ gi_qals-prueflos.

* collect data specification for qualities data

  SELECT *

    INTO CORRESPONDING FIELDS OF TABLE gi_qpct

  FROM qpct

    FOR ALL ENTRIES IN gi_qasr

  WHERE

    codegruppe = gi_qasr-gruppe1.

* collect data result for qualities data

  SELECT *

    INTO CORRESPONDING FIELDS OF TABLE gi_qpam

  FROM qpam

    FOR ALL ENTRIES IN gi_qamv

  WHERE

    auswahlmge = gi_qamv-auswmenge1.

*copy data to GI_HEADER

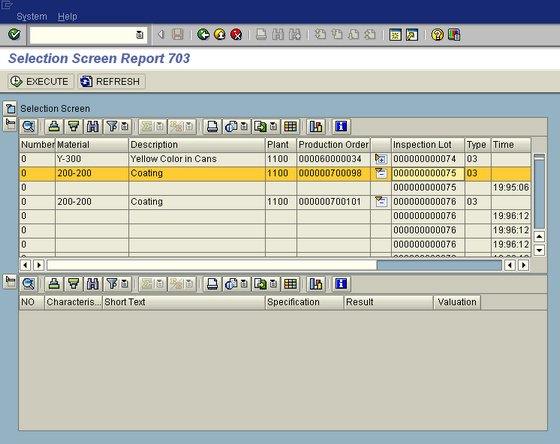

  LOOP AT gi_qals.

*    gi_header-test = '@2\QHide@'.

    gi_header-num = lv_counter.

    MOVE-CORRESPONDING gi_qals TO gi_header.

    SHIFT gi_header-matnr LEFT DELETING LEADING '0' IN CHARACTER MODE.

    SPLIT gi_header-ppsortkey AT '|' INTO lv_text1 lv_text2 lv_text3.

    gi_header-userc2 = lv_text2.

    gi_header-icon = icon_expand.

    gi_header-child = 0.

    gi_header-child_num = 0.

    APPEND gi_header.

  ENDLOOP.

  SORT gi_header BY num child_num.

  CONCATENATE 'Total data :' lv_rowcount INTO gv_info.

ENDFORM.

*&---------------------------------------------------------------------*

*&      Form FM_PROSES_DETAIL

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

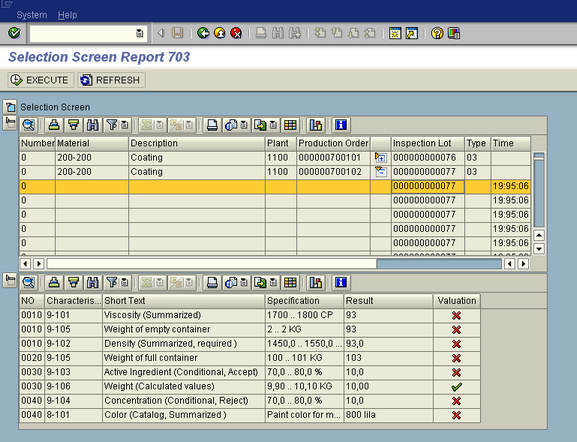

FORM fm_proses_detail USING pv_index.

  DATA: lv_counter TYPE i.

*  CREATE GI_DETAIL

  LOOP AT  gi_detail.

    DELETE gi_detail.

  ENDLOOP.

  CLEAR gi_detail.

  READ TABLE gi_header INDEX pv_index.

*  Add Data Kuantitatif

  LOOP AT gi_qase WHERE prueflos = gi_header-prueflos AND detailerg =

gi_header-probenr.

    LOOP AT gi_qamv WHERE prueflos = gi_qase-prueflos AND merknr =

gi_qase-merknr.

      MOVE-CORRESPONDING gi_header TO gi_detail.

      MOVE-CORRESPONDING gi_qamv TO gi_detail.

      MOVE-CORRESPONDING gi_qase TO gi_detail.

      IF gi_detail-messwert <= gi_detail-toleranzob AND

gi_detail-messwert >= gi_detail-toleranzun.

        gi_detail-icon = icon_checked.

      ELSE.

        gi_detail-icon = icon_cancel.

      ENDIF.

      APPEND gi_detail.

    ENDLOOP.

  ENDLOOP.

*--------------------------------------------------------------------*

*  Add Data Kualitatif

  LOOP AT gi_qasr WHERE prueflos = gi_header-prueflos AND probenr =

gi_header-probenr.

    LOOP AT gi_qamv WHERE prueflos = gi_qase-prueflos AND merknr =

gi_qasr-merknr.

      READ TABLE gi_qase WITH KEY prueflos = gi_header-prueflos

                                  detailerg = gi_header-probenr

                                  merknr = gi_qasr-merknr.

      IF sy-subrc <> 0.

        MOVE-CORRESPONDING gi_header TO gi_detail.

        MOVE-CORRESPONDING gi_qamv TO gi_detail.

        MOVE-CORRESPONDING gi_qasr TO gi_detail.

*        Add Specification

        READ TABLE gi_qpct WITH KEY codegruppe = gi_qasr-gruppe1 code =

gi_qasr-code1.

        CONCATENATE gi_qasr-code1 gi_qpct-kurztext INTO

gi_detail-messwert_char SEPARATED BY space.

*        Add Result

        READ TABLE gi_qpam WITH KEY werks = gi_header-werks

                                    auswahlmge = gi_qamv-auswmenge1.

        gi_detail-tolgrenze = gi_qpam-ktx01.

        IF gi_qasr-code1 = '10'.

          gi_detail-icon = icon_checked.

        ELSE.

          gi_detail-icon = icon_cancel.

        ENDIF.

        APPEND gi_detail.

      ENDIF.

    ENDLOOP.

  ENDLOOP.

*--------------------------------------------------------------------*

*  Add Specification untuk data Kuantitatif

  FREE lv_counter.

  LOOP AT gi_detail.

    ADD 1 TO lv_counter.

    break abap08.

    IF gi_detail-tolgrenze IS INITIAL.

      PERFORM fm_create_specification USING lv_counter.

      PERFORM fstring_ausgeben USING 'X'

                                     gi_detail-messwert

                                     gi_detail-stellen

                            CHANGING gi_detail-messwert_c.

      gi_detail-messwert_char = gi_detail-messwert_c.

      MODIFY gi_detail.

    ENDIF.

  ENDLOOP.

*--------------------------------------------------------------------*

  SORT gi_detail BY merknr.

  IF gv_pb3 = 'X'.

    CALL METHOD

      tg_detail->refresh_table_display

      EXPORTING

        i_soft_refresh = 'X'.

  ENDIF.

ENDFORM.                    "FM_PROSES_DETAIL

*&---------------------------------------------------------------------*

*&      Module  STATUS_1200  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE status_1200 OUTPUT.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.

IF tc_header IS INITIAL.

    PERFORM fm_build_alv_object_header.

  ELSE.

    CALL METHOD

      tg_header->refresh_table_display

      EXPORTING

        i_soft_refresh = 'X'.

  ENDIF.

ENDMODULE.                 " STATUS_1200  OUTPUT

*&---------------------------------------------------------------------*

*&      Module  STATUS_1300  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE status_1300 OUTPUT.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.

IF tc_detail IS INITIAL.

    PERFORM fm_build_alv_object_detail.

  ELSE.

    CALL METHOD

      tg_detail->refresh_table_display

      EXPORTING

        i_soft_refresh = 'X'.

  ENDIF.

ENDMODULE.                 " STATUS_1300  OUTPUT

*&---------------------------------------------------------------------*

*&      Form  FM_BUILD_FIELDCAT_HEADER

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->FT_REPORT  text

*----------------------------------------------------------------------*

FORM fm_build_fieldcat_header TABLES ft_report.

  PERFORM f_fieldcatg USING gw_fieldcat_header 'GI_HEADER' :

*  'CHK' '' 'CHK' '' '1' '' '' '' '' '' '' '' '' '' '' 'X' 'X' '' 'X' ''

*,

*  'TEST' 'GI_HEADER' 'TEST' '' '10' '' '' '' '' '' '' '' '' '' '' '' ''

* '' '' '',

  'NUM' 'GI_HEADER' 'NUM' '' '6' '' '' 'Number' '' '' '' '' '' '' '' ''

'' '' '' '',

  'MATNR' 'GI_HEADER' 'MATNR' '' '13' '' '' 'Material' '' '' '' '' '' ''

 '' '' '' '' '' '',

  'KTEXTMAT' 'GI_HEADER' 'KTEXTMAT' '' '25' '' '' 'Description' '' '' ''

 '' '' '' '' '' '' '' '' '',

  'WERK' 'GI_HEADER' 'WERK' '' '5' '' '' 'Plant' '' '' '' '' '' '' '' ''

 '' '' '' '',

  'AUFNR' 'GI_HEADER' 'AUFNR' '' '13' '' '' 'Production Order' '' '' ''

'' '' '' '' '' '' '' '' '',

  'ICON' 'GI_HEADER' 'ICON' '' '3' '' '' '' '' 'X' '' '' '' '' '' '' ''

'X' '' '',

  'PRUEFLOS' 'GI_HEADER' 'PRUEFLOS' '' '13' '' '' 'Inspection Lot' '' ''

 '' '' '' '' '' '' '' '' '' '',

*  'CHILD_NUM' 'GI_HEADER' 'CHILD_NUM' '' '8' '' '' 'CHILD_NUM' '' '' ''

* '' '' '' '' '' '' '' '' '',

  'ART' 'GI_HEADER' 'ART' '' '4' '' '' 'Type' '' '' '' '' '' '' '' '' ''

 '' '' '',

  'TIME' 'GI_HEADER' 'TIME' '' '8' '' '' 'Time' '' '' '' '' '' '' '' ''

'' '' '' '',

  'DATE' 'GI_HEADER' 'DATE' '' '12' '' '' 'Inspection' '' '' '' '' '' ''

 '' '' '' '' '' '',

  'PROLOT' 'GI_HEADER' 'PROLOT' '' '10' '' '' 'Prod. Lot' '' '' '' '' ''

 '' '' '' '' '' '' ''

*  'PROBENR' 'GI_HEADER' 'PROBENR' '' '10' '' '' 'PROBENR' '' '' '' ''

*'' '' '' '' '' '' '' ''

*  'PRUEFPKT' 'GI_HEADER' 'PRUEFPKT' '' '13' '' '' 'Inspection Point' ''

* '' '' '' '' '' '' '' '' '' '' '',

  .

ENDFORM.                    "FM_BUILD_FIELDCAT_HEADER

*&---------------------------------------------------------------------*

*&      Form  FM_BUILD_FIELDCAT_DETAIL

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->FT_REPORT  text

*----------------------------------------------------------------------*

FORM fm_build_fieldcat_detail TABLES ft_report.

  PERFORM f_fieldcatg USING gw_fieldcat_detail 'GI_DETAIL' :

*  'CHK' '' 'CHK' '' '1' '' '' '' '' '' '' '' '' '' '' 'X' 'X' '' 'X' ''

*,

*  'NUM' 'GI_DETAIL' 'NUM' '' '6' '' '' 'Number' '' '' '' '' '' '' '' ''

* '' '' '' '',

  'MERKNR' 'GI_DETAIL' 'MERKNR' '' '4' '' '' 'NO' '' '' '' '' '' '' ''

'' '' '' '' '',

  'VERWMERKM' 'GI_DETAIL' 'VERWMERKM' '' '10' '' '' 'Characteristic' ''

'' '' '' '' '' '' '' '' '' '' '',

  'KURZTEXT' 'GI_DETAIL' 'KURZTEXT' '' '30' '' '' 'Short Text' '' '' ''

'' '' '' '' '' '' '' '' '',

  'TOLGRENZE' 'GI_DETAIL' 'TOLGRENZE' '' '14' '' '' 'Specification' ''

'' '' '' '' '' '' '' '' '' '' '',

  'MESSWERT_CHAR' 'GI_DETAIL' 'MESSWERT_CHAR' '' '16' '' '' 'Result' ''

'' '' '' '' '' '' '' '' '' '' '',

  'ICON' 'GI_DETAIL' 'ICON' '' '8' '' '' 'Valuation' '' '' '' '' '' ''

'' '' '' 'X' '' ''

  .

ENDFORM.                    "FM_BUILD_FIELDCAT_DETAIL

*&---------------------------------------------------------------------*

*&      Form  F_FIELDCATG

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

FORM f_fieldcatg USING

                      t_alv_fieldcat TYPE lvc_t_fcat

                      value(fu_types)  "0

                      value(fu_fname)  "1

                      value(fu_reftb)  "2

                      value(fu_refld)  "3

                      value(fu_noout)  "4

                      value(fu_outln)  "5

                      value(fu_fltxt)  "6

                      value(fu_reptxt) "7

                      value(fu_coltxt) "8

                      value(fu_dosum)  "9

                      value(fu_hotsp)  "10

                      value(fu_dec)    "11

                      value(fu_waers)

                      value(fu_meins)

                      value(fu_meins_f)

                      value(fu_waers_f)

                      value(fu_checkbox)

                      value(fu_fixcolumn)

                      value(fu_icon)

                      value(fu_edit)

                      value(fu_key)

                      .

  DATA: ld_fieldcat  TYPE lvc_t_fcat WITH HEADER LINE.

  CLEAR: ld_fieldcat.

  ld_fieldcat-tabname       = fu_types.

  ld_fieldcat-fieldname     = fu_fname.

  ld_fieldcat-ref_table     = fu_reftb.

  ld_fieldcat-ref_field     = fu_refld.

  ld_fieldcat-no_out        = fu_noout.

  ld_fieldcat-outputlen     = fu_outln.

  ld_fieldcat-seltext       = fu_fltxt.

  ld_fieldcat-reptext       = fu_reptxt.

  ld_fieldcat-coltext       = fu_coltxt.

  ld_fieldcat-do_sum        = fu_dosum.

  ld_fieldcat-hotspot       = fu_hotsp.

  ld_fieldcat-decimals_o    = fu_dec.

  ld_fieldcat-currency      = fu_waers.

  ld_fieldcat-quantity      = fu_meins.

  ld_fieldcat-qfieldname    = fu_meins_f.

  ld_fieldcat-cfieldname    = fu_waers_f.

  ld_fieldcat-checkbox      = fu_checkbox.

  ld_fieldcat-fix_column    = fu_fixcolumn.

  ld_fieldcat-icon          = fu_icon.

  ld_fieldcat-edit          = fu_edit.

  ld_fieldcat-key          = fu_key.

  APPEND ld_fieldcat TO t_alv_fieldcat.

ENDFORM.                    "F_FIELDCATG

*&---------------------------------------------------------------------*

*&      Form  FM_BUILD_ALV_OBJECT_HEADER

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

FORM fm_build_alv_object_header.

*to define container

  CREATE OBJECT tc_header

     EXPORTING container_name = 'FC_HEADER'.

*to insert grid into it's container

  CREATE OBJECT tg_header

     EXPORTING i_parent = tc_header.

  CREATE OBJECT go_event_receiver_header.

  PERFORM fm_build_fieldcat_header TABLES gw_fieldcat_header.

  CREATE OBJECT go_event_receiver_header.

  SET HANDLER go_event_receiver_header->handle_toolbar FOR tg_header.

  SET HANDLER go_event_receiver_header->handle_user_command FOR

tg_header.

  SET HANDLER go_event_receiver_header->handle_hotspot_click FOR

tg_header.

  SET HANDLER go_event_receiver_header->handle_button_click FOR

tg_header.

  SET HANDLER go_event_receiver_header->handle_double_click FOR

tg_header.

  CALL METHOD

    tg_header->set_table_for_first_display

    EXPORTING

      i_save           = 'U'

      i_structure_name = 'GI_HEADER'

    CHANGING

      it_outtab        = gi_header[]

      it_fieldcatalog  = gw_fieldcat_header[].

ENDFORM.                    "FM_BUILD_ALV_OBJECT_HEADER

*&---------------------------------------------------------------------*

*&      Form  FM_BUILD_ALV_OBJECT_DETAIL

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

FORM fm_build_alv_object_detail.

  CREATE OBJECT tc_detail

     EXPORTING container_name = 'FC_DETAIL'.

  CREATE OBJECT tg_detail

     EXPORTING i_parent = tc_detail.

  CREATE OBJECT go_event_receiver_detail.

  PERFORM fm_build_fieldcat_detail TABLES gw_fieldcat_detail.

  CREATE OBJECT go_event_receiver_detail.

  SET HANDLER go_event_receiver_detail->handle_toolbar FOR tg_detail.

  SET HANDLER go_event_receiver_detail->handle_user_command FOR

tg_detail.

  SET HANDLER go_event_receiver_detail->handle_hotspot_click FOR

tg_detail.

  SET HANDLER go_event_receiver_detail->handle_button_click FOR

tg_detail.

  CALL METHOD

    tg_detail->set_table_for_first_display

    EXPORTING

      i_save           = 'U'

      i_structure_name = 'GI_DETAIL'

    CHANGING

      it_outtab        = gi_detail[]

      it_fieldcatalog  = gw_fieldcat_detail[].

ENDFORM.                    "FM_BUILD_ALV_OBJECT_DETAIL

*&---------------------------------------------------------------------*

*&      Form  FM_ON_CLICK_HOTSPOT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->I_ROW_ID     text

*      -->                 text

*      -->I_COLUMN_ID  text

*      -->                 text

*      -->IS_ROW_NO    text

*----------------------------------------------------------------------*

FORM fm_on_click_hotspot USING i_row_id TYPE lvc_s_row

             i_column_id TYPE lvc_s_col

            is_row_no TYPE lvc_s_roid.

*  READ TABLE GI_HEADER INDEX I_ROW_ID.

*  IF SY-SUBRC IS INITIAL.

*    GV_ROW_NO = I_ROW_ID.

*  ENDIF.

  READ TABLE gi_header INDEX i_row_id.

  IF gi_header-icon IS INITIAL.

  ELSEIF gi_header-icon = icon_expand.

    PERFORM fm_load_child_header USING gi_header-prueflos gi_header-werk

 i_row_id.

  ELSEIF gi_header-icon = icon_collapse.

    PERFORM fm_unload_child_header USING gi_header-prueflos i_row_id.

  ENDIF.

ENDFORM.                    "FM_ON_CLICK_HOTSPOT

*&---------------------------------------------------------------------*

*&      Form  fm_on_BUTTON_CLICK

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->P_ES_COL_ID  text

*      -->P_ES_ROW_NO  text

*----------------------------------------------------------------------*

FORM fm_on_button_click  USING    p_es_col_id

                                  p_es_row_no.

  READ TABLE gi_header INDEX p_es_row_no.

  IF sy-subrc IS INITIAL.

    gv_row_no = p_es_row_no.

  ENDIF.

ENDFORM.                    " fm_on_BUTTON_CLICK

*&---------------------------------------------------------------------*

*&      Form  FM_ON_DOUBLE_CLICK

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->P_E_ROW  text

*      -->P_E_COLUMN  text

*      -->P_ES_ROW_NO  text

*----------------------------------------------------------------------*

FORM fm_on_double_click  USING    p_e_row

                                  p_e_column

                                  p_es_row_no TYPE lvc_s_roid.

*  BREAK ABAP08.

  DATA: lv_row_id TYPE i.

  lv_row_id = p_es_row_no-row_id.

  READ TABLE gi_header INDEX lv_row_id.

  IF gi_header-icon IS INITIAL.

    PERFORM fm_proses_detail USING lv_row_id.

  ENDIF.

ENDFORM.                    " FM_ON_DOUBLE_CLICK

*&---------------------------------------------------------------------*

*&      Form  FM_load_child_header

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

FORM fm_load_child_header USING pv_prueflos pv_werks pv_i_row_id TYPE

lvc_s_row.

  DATA: lv_rowcount(6),

        lv_counter TYPE i,

        lv_row_id TYPE i,

        lv_text1(6),

        lv_text2(10),

        lv_text3(10),

        lv_werks LIKE qals-werk.

  lv_werks = pv_werks.

  READ TABLE gi_header WITH KEY prueflos = pv_prueflos icon =

icon_expand.

  IF sy-subrc = 0.

    gi_header-icon = icon_collapse.

*  GI_HEADER-CHK = 'X'.

    FREE lv_counter.

    LOOP AT gi_qapp WHERE prueflos EQ pv_prueflos.

      ADD 1 TO lv_counter .

    ENDLOOP.

    IF lv_counter > 0.

      MODIFY gi_header INDEX sy-tabix.

      FREE lv_counter.

      LOOP AT gi_qapp WHERE prueflos EQ pv_prueflos.

        ADD 1 TO lv_counter .

        CLEAR gi_header.

        FREE  gi_header-num.

        gi_header-werks = lv_werks.

        gi_header-prueflos = gi_qapp-prueflos.

        gi_header-child_num = lv_counter.

        gi_header-child = pv_i_row_id.

        SPLIT gi_qapp-ppsortkey AT '|' INTO lv_text1 lv_text2 lv_text3.

        CONCATENATE lv_text1+0(2) lv_text1+2(2) lv_text1+4(2) INTO

gi_header-time SEPARATED BY ':' .

        CONCATENATE lv_text2+6(2) lv_text2+4(2) lv_text2+0(4) INTO

gi_header-date SEPARATED BY '/' .

        gi_header-prolot = lv_text3.

        gi_header-probenr = gi_qapp-probenr.

        SHIFT gi_header-prolot LEFT DELETING LEADING '0' IN CHARACTER

MODE.

        APPEND gi_header.

      ENDLOOP.

      IF lv_counter > 0.

        SORT gi_header BY prueflos child_num child.

        pv_i_row_id-index = pv_i_row_id-index + lv_counter + 4.

        CALL METHOD

          tg_header->refresh_table_display

          EXPORTING

            i_soft_refresh = 'X'.

        CALL METHOD

          tg_header->set_current_cell_via_id

          EXPORTING

            is_row_id = pv_i_row_id.

      ENDIF.

    ENDIF.

  ENDIF.

ENDFORM.                    "FM_load_child_header

*&---------------------------------------------------------------------*

*&      Form  FM_UNLOAD_CHILD_HEADER

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->PV_NUM       text

*      -->PV_PRUEFLOS  text

*----------------------------------------------------------------------*

FORM fm_unload_child_header USING pv_prueflos pv_i_row_id TYPE lvc_s_row

.

  DATA: lv_rowcount(6),

        lv_counter TYPE i.

  LOOP AT gi_qapp WHERE prueflos EQ pv_prueflos.

    ADD 1 TO lv_counter.

  ENDLOOP.

  IF lv_counter > 0.

    LOOP AT gi_header WHERE child_num > 0 AND prueflos = pv_prueflos.

      DELETE gi_header INDEX sy-tabix.

    ENDLOOP.

    LOOP AT gi_header WHERE prueflos = pv_prueflos.

      gi_header-icon = icon_expand.

      MODIFY gi_header.

    ENDLOOP.

    pv_i_row_id-index = pv_i_row_id-index + lv_counter.

    CALL METHOD

      tg_header->refresh_table_display

      EXPORTING

        i_soft_refresh = 'X'.

    CALL METHOD

      tg_header->set_current_cell_via_id

      EXPORTING

        is_row_id = pv_i_row_id.

  ENDIF.

ENDFORM.                    "FM_UNLOAD_CHILD_HEADER

*&---------------------------------------------------------------------*

*&      Form  fm_create_specification

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

FORM fm_create_specification USING pv_tabix.

  DATA: l_string         LIKE qamkr-tolgrenze,

        l_length         TYPE i,

        l_length_write   TYPE i,

        l_maximum_length TYPE i VALUE 40,

        lv_qmkst LIKE STANDARD TABLE OF qmkst WITH HEADER LINE.

  READ TABLE gi_detail INDEX pv_tabix.

  FREE gi_detail-tolgrenze.

  IF gi_detail-tolgrenze IS INITIAL.

    MOVE gi_detail-steuerkz TO lv_qmkst.

    CLEAR l_string.

    CLEAR l_length.

* Untere Toleranz

    PERFORM fstring_ausgeben USING 'X'

                                   gi_detail-toleranzun

                                   gi_detail-stellen

                          CHANGING gi_detail-toleranzun_char.

* Obere Toleranz

    PERFORM fstring_ausgeben USING 'X'

                                   gi_detail-toleranzob

                                   gi_detail-stellen

                          CHANGING gi_detail-toleranzob_char.

    IF NOT gi_detail-tolunni IS INITIAL.

      IF   gi_detail-tolobni IS INITIAL.

* Nur untere Toleranzgrenze

        MOVE '>=' TO l_string.

        l_length = STRLEN( l_string ) + 2.

      ENDIF.

* Untere Toleranzgrenze übernehmen

      CONDENSE gi_detail-toleranzun_char.

      l_length_write = STRLEN( gi_detail-toleranzun_char ).

      ADD l_length TO l_length_write.

      IF l_length_write LE l_maximum_length.

        WRITE gi_detail-toleranzun_char TO l_string+l_length.

      ENDIF.

      IF NOT gi_detail-tolobni IS INITIAL.

        l_length = STRLEN( l_string ).

        l_length_write = l_length + 2.

        IF l_length_write LE l_maximum_length.

          WRITE ' .. ' TO l_string+l_length.

        ENDIF.

      ENDIF.

    ENDIF.

    IF NOT gi_detail-tolobni IS INITIAL.

      CONDENSE gi_detail-toleranzob_char.

      IF gi_detail-tolunni IS INITIAL.

* Nur obere Toleranzgrenze

        MOVE '<=' TO l_string.

        l_length = STRLEN( l_string ) + 2.

      ELSE.

        l_length = STRLEN( l_string ) + 1.

      ENDIF.

      l_length_write = STRLEN( gi_detail-toleranzob_char ).

      ADD l_length TO l_length_write.

      IF l_length_write LE l_maximum_length.

        WRITE gi_detail-toleranzob_char TO l_string+l_length.

      ENDIF.

    ENDIF.

    IF    gi_detail-tolunni IS INITIAL

      AND gi_detail-tolobni IS INITIAL.

* Keine Toleranzgrenze zum Merkmal

      IF NOT gi_detail-sollwni IS INITIAL.

* Sollwert zum Merkmal gepflegt

        PERFORM fstring_ausgeben USING 'X'

                                       gi_detail-sollwert

                                       gi_detail-stellen

                              CHANGING gi_detail-sollwert_char.

        WRITE gi_detail-sollwert_char TO l_string.

      ELSE.

        IF NOT lv_qmkst-messwerte IS INITIAL.

* Quantitative Rückmeldung ohne quantitative Vorgaben

* Nachfolgend wird noch eine evtl. vorhandene Maßeinheit gesetzt

          CLEAR l_string.

        ELSEIF NOT lv_qmkst-pruefkat IS INITIAL.

** Auswahlmenge vorhanden

*          MOVE GI_DETAIL-QPAMKTXT1  TO L_STRING.

        ELSEIF lv_qmkst-bewfhlzhl IS INITIAL.

** Anzahl der fehlerhaften Einheiten sind zurückzumelden

*          IF (   P_QAQEE-ERFSICHT EQ '11'

*              OR P_QAQEE-ERFSICHT EQ '12' )

*           AND LV_QMKST-ESTUKZ EQ URWERT_CHAR.

*            MOVE 'Accepted <-> Rejected' TO L_STRING.

*          ELSE.

*            MOVE 'Number of nonconforming units' TO L_STRING.

*          ENDIF.

        ELSE.

* Anzahl Fehler sind zurückzumelden

          MOVE 'No. of defects' TO l_string.

        ENDIF.

      ENDIF.

    ENDIF.

    IF    NOT gi_detail-masseinhsw IS INITIAL

      AND NOT lv_qmkst-quantitat  IS INITIAL.

* Maßeinheit übernehmen

      l_length = STRLEN( l_string ) + 1.

      l_length_write = STRLEN( gi_detail-masseinhsw ).

      ADD l_length TO l_length_write.

      IF l_length_write LE l_maximum_length.

        WRITE gi_detail-masseinhsw TO l_string+l_length.

      ENDIF.

    ENDIF.

    IF l_string IS INITIAL.

* Keine Vorgabeninformationen vorhanden

      MOVE text-104 TO l_string.

    ENDIF.

* Hilfsfeld in Merkmalsstruktur übernehmen

    MOVE l_string TO gi_detail-tolgrenze.

  ENDIF.

ENDFORM.                    "fm_create_specification

INCLUDE zre_qm011_utilities.

TYPE-POOLS: ICON.

*&---------------------------------------------------------------------*

*&  Include           ZRE_QM011_CLASSES                                *

*&---------------------------------------------------------------------*

*&---------------------------------------------------------------------

*&- C L A S S E S

*&---------------------------------------------------------------------

CLASS lcl_event_receiver DEFINITION.

  PUBLIC SECTION.

    METHODS:

     handle_toolbar FOR EVENT toolbar OF cl_gui_alv_grid

       IMPORTING

         e_object e_interactive,

     handle_user_command FOR EVENT user_command OF cl_gui_alv_grid

       IMPORTING e_ucomm,

     handle_hotspot_click FOR EVENT hotspot_click OF cl_gui_alv_grid

        IMPORTING e_row_id e_column_id es_row_no,

     handle_button_click FOR EVENT button_click OF cl_gui_alv_grid

        IMPORTING es_col_id es_row_no,

     handle_double_click FOR EVENT double_click OF cl_gui_alv_grid

        IMPORTING e_row e_column es_row_no.

ENDCLASS.                    "lcl_event_receiver DEFINITION

*---------------------------------------------------------------------*

*       CLASS lcl_event_receiver IMPLEMENTATION

*---------------------------------------------------------------------*

CLASS lcl_event_receiver IMPLEMENTATION.

  METHOD handle_toolbar.

*  Event handler method for event toolbar.

    CONSTANTS:

*  Constants for button type

      c_button_normal           TYPE i VALUE 0,

      c_menu_and_default_button TYPE i VALUE 1,

      c_menu                    TYPE i VALUE 2,

      c_separator               TYPE i VALUE 3,

      c_radio_button            TYPE i VALUE 4,

      c_checkbox                TYPE i VALUE 5,

      c_menu_entry              TYPE i VALUE 6.

    DATA:

        ls_toolbar  TYPE stb_button.

*   Append seperator to the normal toolbar

    CLEAR ls_toolbar.

    MOVE c_separator TO ls_toolbar-butn_type..

    APPEND ls_toolbar TO e_object->mt_toolbar.

*   Append a new button that to the toolbar. Use E_OBJECT of

*   event toolbar. E_OBJECT is of type CL_ALV_EVENT_TOOLBAR_SET.

*   This class has one attribute MT_TOOLBAR which is of table type

*   TTB_BUTTON. The structure is STB_BUTTON

*    CLEAR LS_TOOLBAR.

*    MOVE 'BATALKAN_SKET'        TO LS_TOOLBAR-FUNCTION.

*    MOVE ICON_SYSTEM_MODUS_DELETE  TO LS_TOOLBAR-ICON.

*    MOVE 'BATALKAN SKET'     TO LS_TOOLBAR-QUICKINFO.

*    MOVE 'BATALKAN SKET'     TO LS_TOOLBAR-TEXT.

*    MOVE ' '              TO LS_TOOLBAR-DISABLED.

*    APPEND LS_TOOLBAR     TO E_OBJECT->MT_TOOLBAR.

*

  ENDMETHOD.                    "handle_toolbar

  METHOD handle_user_command.

*   Handle own functions defined in the toolbar

*    CASE E_UCOMM.

**      WHEN 'BATALKAN_SKET'.

**        PERFORM FM_BATALKAN_SKET.

*    ENDCASE.

  ENDMETHOD.                    "handle_user_command

  METHOD handle_hotspot_click.

    PERFORM fm_on_click_hotspot USING e_row_id

                                      e_column_id

                                      es_row_no.

  ENDMETHOD.                    "handle_hotspot_click

  METHOD handle_button_click.

    PERFORM fm_on_button_click USING es_col_id

                                      es_row_no.

  ENDMETHOD.                    "HANDLE_BUTTON_CLICK

  METHOD handle_double_click.

    PERFORM fm_on_double_click USING e_row

                                     e_column

                                     es_row_no.

  ENDMETHOD.

ENDCLASS.                    "lcl_event_receiver IMPLEMENTATION

*&---------------------------------------------------------------------

*&---------------------------------------------------------------------*

*&  Include           ZRE_FI010_UTILITIES                              *

*&---------------------------------------------------------------------*

*&---------------------------------------------------------------------*

*&      Form  Fm_POPUP_TO_CONFIRM

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->FU_TITLE   text

*      -->FU_TEXT1   text

*      -->FC_ANS     text

*----------------------------------------------------------------------*

FORM FM_POPUP_TO_CONFIRM  USING    FU_TITLE

                                  FU_TEXT1

                         CHANGING FC_ANS.

  CALL FUNCTION 'POPUP_TO_CONFIRM'

    EXPORTING

      TITLEBAR                    = FU_TITLE

*     DIAGNOSE_OBJECT             = ' '

      TEXT_QUESTION               = FU_TEXT1

      TEXT_BUTTON_1               = 'Yes'(001)

      ICON_BUTTON_1               = 'ICON_OKAY'

      TEXT_BUTTON_2               = 'No'(002)

      ICON_BUTTON_2               = 'ICON_CANCEL'

      DEFAULT_BUTTON              = '1'

      DISPLAY_CANCEL_BUTTON       = ' '

*     USERDEFINED_F1_HELP         = ' '

      START_COLUMN                = 25

      START_ROW                   = 6

      POPUP_TYPE                  = 'ICON_MESSAGE_WARNING'

*     IV_QUICKINFO_BUTTON_1       = ' '

*     IV_QUICKINFO_BUTTON_2       = ' '

    IMPORTING

      ANSWER                      = FC_ANS

*   TABLES

*     PARAMETER                   =

    EXCEPTIONS

      TEXT_NOT_FOUND              = 1

      OTHERS                      = 2.

  IF SY-SUBRC <> 0.

*         MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO

*           WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.

  ENDIF.

ENDFORM.                    "Fm_POPUP_TO_CONFIRM

*&---------------------------------------------------------------------*

*&      Form  FSTRING_AUSGEBEN

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->VALUE(NOTINI)   text

*      -->VALUE(F)        text

*      -->VALUE(STELLEN)  text

*      -->VALUE(STRING)   text

*----------------------------------------------------------------------*

FORM FSTRING_AUSGEBEN USING    VALUE(NOTINI)

                               VALUE(F)

                               VALUE(STELLEN)

                      CHANGING VALUE(STRING).

  CALL FUNCTION 'QSS4_FSTRING_AUSGEBEN'

    EXPORTING

      I_NOTINI   = NOTINI

      I_FLOAT    = F

      I_DECIMALS = STELLEN

    IMPORTING

      E_STRING   = STRING.

ENDFORM.                    "FSTRING_AUSGEBEN
