Menu Exits

Objective

Menu Exits

Transaction code

CMOD - Project Management of SAP Enhancements

Support





Within these pages will be exemplified how to insert Code on a SAP program that has the SAP Customer exits with type of the "Menu Exits", examples of t-Code that used are "BC425_18".



1. Open t-Code CMOD

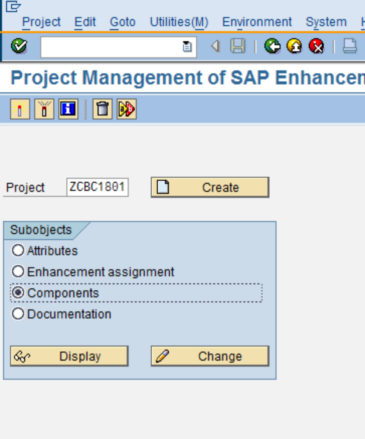

2. Insert project "ZCBC1801" that was made on "Function Module Exits" and then choose Radio button "Components"

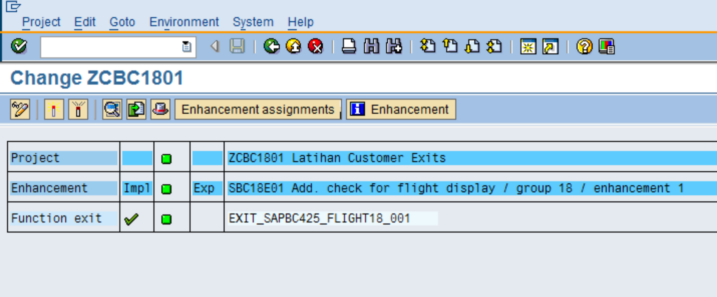

3. Click "Change" for view list enhancement that has been used



4. Click "Undo Activation"

5. Click "Enhancement Assignments" for Add New Enhancement

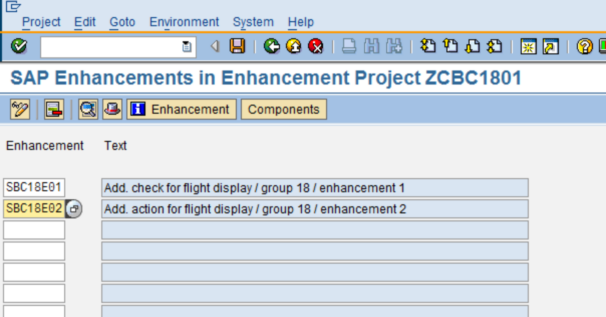

6. For example insert Enhancement "SBC18E02"



7. Click "Components" and then press the button "Yes" for save

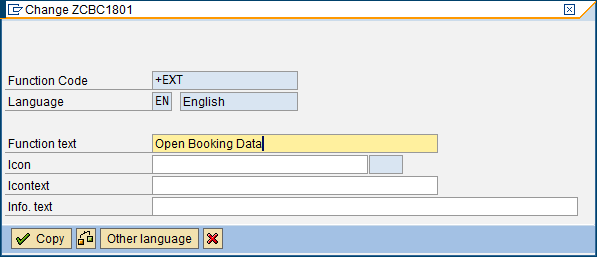

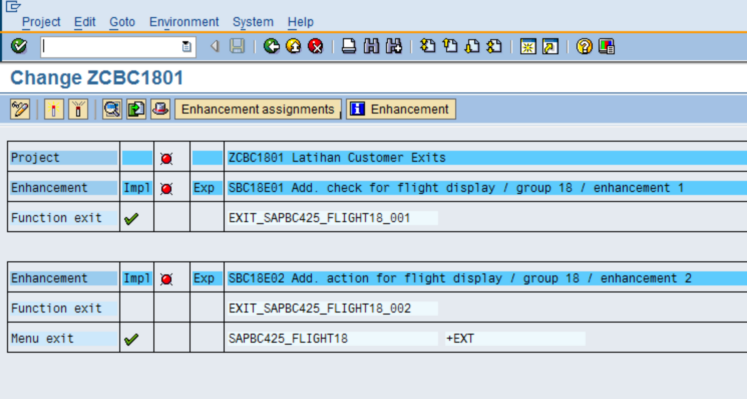

8. Double Click at line "Menu Exits" and change the Function Text as below

abap_tutorial0138



9. Click "Copy"

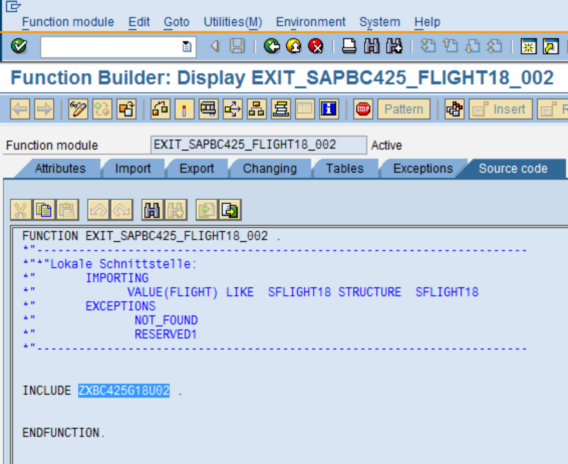

10. Double Click "EXIT_SAPBC425_FLIGHT18_002"



11. Double Click include "ZXBC425G18U02" then press Enter



abap_tutorial0139



12. Press the button "Yes" and Save in Local Object or Development Class accordance with the requirements

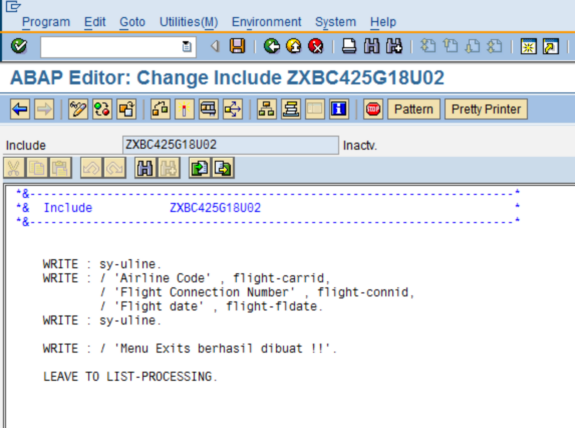

13. Insert Syntax as below



14. Activate Program

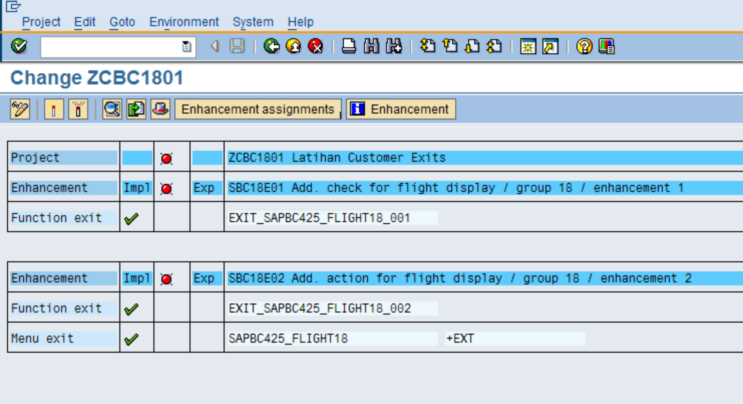

15. Then press the button "Back" twice for back to the screen as below



16. Click "Activate"

17. Then test using t-Code "BC425_18"

18. Insert the value as bellow then press enter or press the button "Display"

abap_tutorial0179

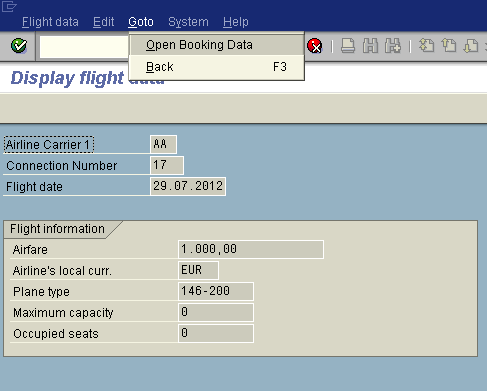

19. Click "Open Booking Data".

abap_tutorial0181

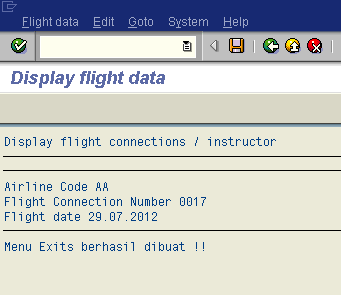

20. If screen appears as bellow then Menu Exits has been successfully created.

abap_tutorial0180





20. Finish



Notes : If not appear then do step 5 with another object that has been found
