Data Element

Data Element is a part of Elementary Types with global type, which use at all Field (in Table) and to be reference data type in ABAP program.



Steps to make Data Element

1. Open t-code SE11

2. Activate Radio Button abap_tutorial0027

3. Insert Data Element Name, initiate with letter Z or Y

abap_tutorial0032

4. Click Button abap_tutorial0015

5. Choose Data Element, then Click Button abap_tutorial0034

abap_tutorial0033

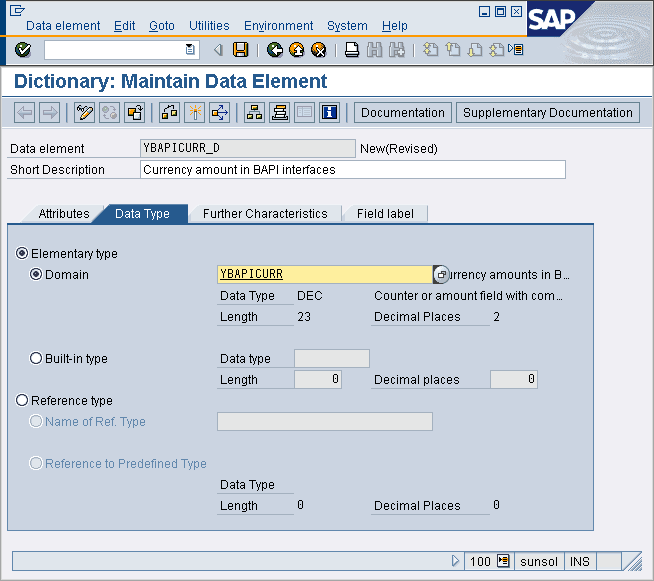

6. Fill in Short Description. Then fill in Domain if you want to use data type from Domain. But if you want to make data type then activate Built-int type.

abap_tutorial0035

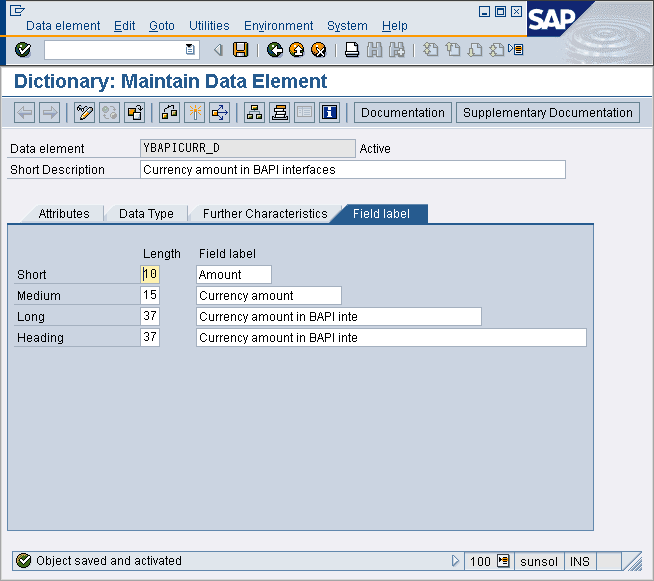

7. Activate Field label's type then Fill in Field label as requirement, for finish press enter.

abap_tutorial0036

8. Click Button abap_tutorial0019

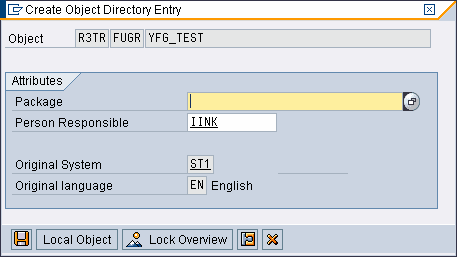

9.Package is filled to make Transportable Data Element into other client, but you don't need to fill it if practice only.

abap_tutorial0058

10. Click button abap_tutorial0019 to make Transportable Data Element into other client. Click button abap_tutorial0020 for practice only.

11. Click button abap_tutorial0031 to activate Data Element
